Define a Custom Bus Model
In this Tutorial, we will define a custom bus model that can be used in PowerDynamics.jl.
The model we set out to recreate is the classical machine from Chapter 15.1 from Milano's book
F. Milano, Power System Modelling and Scripting, Berlin, Heidelberg: Springer Berlin Heidelberg, 2010. doi: 10.1007/978-3-642-13669-6.
Defining the Machine as Injector
In order to use this model in a Bus, we need to define it in a way that it specifies the Injector Interface.
┌───────────────────┐
terminal │ │
o←───────┤ Machine Equations │
u_r, u_i │ │
i_r, i_i └───────────────────┘
The received values for $u_r$, $u_i$, $i_r$, and $i_i$ at the terminal are in the global synchronous dq frame. The internal state $δ$ describes the rotor angle of the machine in this frame. In order to obtain the local dq-frame voltages and currents, we need to apply a Park transformation.
In addition to the transformation, the model is defined by the following equations:
\[\begin{aligned} \frac{d\delta}{dt} &= \omega_b(\omega - 1) &\text{(Milano 15.5)} \\ 2H \frac{d\omega}{dt} &= \frac{P_m}{\omega} - \tau_e &\text{(Power form of Milano 15.5)} \\ \psi_d &= V_q + R_s I_q &\text{(Milano 15.11)} \\ \psi_q &= -V_d - R_s I_d &\text{(Milano 15.11)} \\ \tau_e &= \psi_d I_q - \psi_q I_d &\text{(Milano 15.6)} \\ 0 &= V_q + R_s I_q + X'_d I_d - v_{f,\text{set}} &\text{(Milano 15.36)} \\ 0 &= V_d + R_s I_d - X'_d I_q &\text{(Milano 15.36)} \end{aligned}\]
We can use the ModelingToolkit DSL to define the full injector model:
using PowerDynamics, NetworkDynamics, ModelingToolkit
using PowerDynamics.Library
using ModelingToolkit: t_nounits as t, D_nounits as Dt
using ModelingToolkitStandardLibrary.Blocks
using OrdinaryDiffEqRosenbrock, OrdinaryDiffEqNonlinearSolve
using CairoMakie
@mtkmodel MilanoClassicalMachine begin
@components begin
terminal=Terminal()
end
@parameters begin
R_s=0.000124, [description="stator resistance"]
X′_d=0.0608, [description="d-axis transient reactance"]
H=23.64, [description="inertia constant"]
ω_b=2π*50, [description="System base frequency in rad/s"]
vf_set, [guess=1, description="field voltage"]
P_m, [guess=1, description="mechanical power"]
end
@variables begin
δ(t), [guess=0, description="rotor angle"]
ω(t), [guess=1, description="rotor speed"]
τ_e(t), [description="electrical torque"]
I_d(t), [description="d-axis current"]
I_q(t), [description="q-axis current"]
V_d(t), [description="d-axis voltage"]
V_q(t), [description="q-axis voltage"]
ψ_d(t), [description="d-axis flux linkage"]
ψ_q(t), [description="q-axis flux linkage"]
end
begin
T_to_loc(α) = [ sin(α) -cos(α);
cos(α) sin(α)]
T_to_glob(α) = [ sin(α) cos(α);
-cos(α) sin(α)]
end
@equations begin
# Park's transformations
[terminal.u_r, terminal.u_i] .~ T_to_glob(δ)*[V_d, V_q]
[I_d, I_q] .~ T_to_loc(δ)*[terminal.i_r, terminal.i_i]
# mechanical swing equation Milano 15.5
Dt(δ) ~ ω_b*(ω - 1)
2*H * Dt(ω) ~ P_m/ω - τ_e
# static flux linkage equations Milano 15.11
ψ_d ~ V_q + R_s*I_q
ψ_q ~ -V_d - R_s*I_d
# electrical torque Milano 15.6
τ_e ~ ψ_d*I_q - ψ_q*I_d
# magnetic equations from static model Milano 15.36
0 ~ V_q + R_s*I_q + X′_d*I_d - vf_set
0 ~ V_d + R_s*I_d - X′_d*I_q
end
end
@named machine = MilanoClassicalMachine();We can verify that the model satisfies the Injector Interface by checking
isinjectormodel(machine)trueAttaching the Machine to a Busbar
In order to use the machine model, we need to attach it to a busbar, thus forming a system which satisfies the MTKBus Interface. There are two ways of doing so: manually and using the MTKBus constructor.
Manual Construction
We need to define a new MTK model, which has 2 components: a busbar and the machine. Both components have a terminal as a subcomponent, we can use the connect function to hook the machine on the busbar.
@mtkmodel MyMTKBus begin
@components begin
busbar = BusBar()
machine = MilanoClassicalMachine()
end
@equations begin
connect(busbar.terminal, machine.terminal)
end
end
mtkbus = MyMTKBus(name=:bus)
isbusmodel(mtkbus) # assert that the created model satisfies the interfacetrueAutomatic Construction
We can also use the MTKBus constructor to create a busbar with a machine attached. This constructor takes a list of injector models and hooks them all to the same busbar.
mtkbus = MTKBus(machine; name=:bus)
isbusmodel(mtkbus) # assert that the created model satisfies the interfacetrueCompiling bus to VertexModel
To actually simulate the system, we need to compile the model, i.e. transforming it from a purely symbolic representation to a numerical one.
Bus(mtkbus)VertexModel :bus PureStateMap()
├─ 2 inputs: [busbar₊i_r, busbar₊i_i]
├─ 4 states: [machine₊ω≈1, machine₊δ≈0, busbar₊u_r=1, busbar₊u_i=0]
| with diagonal mass matrix [1, 1, 0, 0]
├─ 2 outputs: [busbar₊u_r=1, busbar₊u_i=0]
└─ 6 params: [machine₊R_s=0.000124, machine₊X′_d=0.0608, machine₊H=23.64, machine₊ω_b=314.16, machine₊vf_set≈1, machine₊P_m≈1]Defining a Simulation Scenario
To simulate the model, we need to define some kind of scenario. We'll create a simple two-bus system where our custom Milano machine is connected to a slack bus through a transmission line. This will allow us to observe the machine's dynamic behavior in response to a frequency disturbance.
First, we create a slack bus that provides the voltage and frequency reference for the system.
slackbus = Bus(
PowerDynamics.VariableFrequencySlack(name=:variable_slack),
vidx=1,
pf=pfSlack(V=1)
)VertexModel :variable_slack NoFeedForward() @ Vertex 1
├─ 2 inputs: [busbar₊i_r, busbar₊i_i]
├─ 1 state: [δ≈0]
├─ 2 outputs: [busbar₊u_r=1, busbar₊u_i=0]
└─ 3 params: [V≈1, ω=1, ω_b=314.16]
Powerflow model :slackbus with [slack₊V=1, slack₊δ=0]We define a frequency event that increases the system frequency at t=1 second (see ND docs on Callbacks for details). This disturbance will cause our machine to respond dynamically as it tries to maintain synchronism with the network.
freq_event = PresetTimeComponentCallback(
1, # trigger at time 1
ComponentAffect([],[:V,:ω]) do u, p, ctx
p[:ω] = 1.01 # set frequency to 1.01 pu
end
)
set_callback!(slackbus, freq_event)Next, we create the generator bus using our custom Milano machine model. We specify it as a PV bus for the power flow with 1 pu voltage and 1 pu active power.
genbus = Bus(
mtkbus,
vidx=2,
pf=pfPV(V=1, P=1)
)VertexModel :bus PureStateMap() @ Vertex 2
├─ 2 inputs: [busbar₊i_r, busbar₊i_i]
├─ 4 states: [machine₊ω≈1, machine₊δ≈0, busbar₊u_r=1, busbar₊u_i=0]
| with diagonal mass matrix [1, 1, 0, 0]
├─ 2 outputs: [busbar₊u_r=1, busbar₊u_i=0]
└─ 6 params: [machine₊R_s=0.000124, machine₊X′_d=0.0608, machine₊H=23.64, machine₊ω_b=314.16, machine₊vf_set≈1, machine₊P_m≈1]
Powerflow model :pvbus with [pv₊P=1, pv₊V=1]We connect the two buses with a simple PI transmission line model.
line = Line(MTKLine(PiLine(; name=:piline)); src=1,dst=2)EdgeModel :line PureFeedForward() @ Edge 1=>2
├─ 2/2 inputs: src=[src₊u_r, src₊u_i] dst=[dst₊u_r, dst₊u_i]
├─ 0 states: []
├─ 2/2 outputs: src=[src₊i_r, src₊i_i] dst=[dst₊i_r, dst₊i_i]
└─ 9 params: [piline₊R=0, piline₊X=0.1, piline₊G_src=0, piline₊B_src=0, piline₊G_dst=0, piline₊B_dst=0, piline₊r_src=1, piline₊r_dst=1, piline₊active=1]Now we can build the complete network with our two buses and the connecting line.
nw = Network([slackbus, genbus], line)Network with 5 states and 18 parameters
├─ 2 vertices (2 unique types)
└─ 1 edges (1 unique type)
Edge-Aggregation using SequentialAggregator(+)
1 callback set across 1 vertex and 0 edgesBefore running dynamic simulation, we initialize the system from power flow. This ensures that all dynamic states start from a steady-state condition.
To do so, we use the function initialize_from_pf!, which does several steps:
- Calculate the powerflow according to the powerflow models.
- Initialize the "free" states and parameters of the dynamical components, such that the system is in a steady state.
More information on initialization can be found in the docs on Powergrid Initialization.
initialize_from_pf!(nw)Initializing vertex 1... => residual 0.0
Initializing vertex 2... => residual 1.3877787807814457e-17
Initializing edge 1... => residual 0.0
Initialized network with residual 1.3877787807814457e-17!Let's examine the initial state of our generator bus to verify proper initialization.
dump_initial_state(nw[VIndex(2)])Inputs:
busbar₊i_i = -0.050126
busbar₊i_r = -1
States:
busbar₊u_i = 0.1
busbar₊u_r = 0.99499
machine₊δ = 0.16069 (guess 0)
machine₊ω = 1 (guess 1)
Outputs:
busbar₊u_i = 0.1
busbar₊u_r = 0.99499
Parameters:
machine₊H = 23.64
machine₊P_m = 1.0001 (guess 1)
machine₊R_s = 0.000124
machine₊X′_d = 0.0608
machine₊vf_set = 1.005 (guess 1)
machine₊ω_b = 314.16
Observed:
busbar₊P = 1
busbar₊Q = 0.050126
busbar₊i_arg = -3.0915
busbar₊i_mag = 1.0013
busbar₊terminal₊i_i = -0.050126
busbar₊terminal₊i_r = -1
busbar₊terminal₊u_i = 0.1
busbar₊terminal₊u_r = 0.99499
busbar₊u_arg = 0.10017
busbar₊u_mag = 1
machine₊I_d = 0.11052
machine₊I_q = 0.99514
machine₊V_d = 0.060491
machine₊V_q = 0.99817
machine₊terminal₊i_i = 0.050126
machine₊terminal₊i_r = 1
machine₊terminal₊u_i = 0.1
machine₊terminal₊u_r = 0.99499
machine₊τ_e = 1.0001
machine₊ψ_d = 0.99829
machine₊ψ_q = -0.060504The printout shows us several important aspects: The free internal states $\delta$, $\omega$ and the free internal parameters $P_{\mathrm m}$ and $vf_{\mathrm{set}}$ have been initialized. We see, that both power and excitation voltage are slightly above the given (1,1) for the powerflow, which is expected since there are some losses in the model. However the initialized state matches the powerflow solution at the network interface, i.e. busbar₊P and busbar₊u_mag are both 1 pu.
Dynamic Simulation
With the system properly initialized, we can set up and solve the dynamic simulation. We simulate for 100 seconds to capture the machine's response to the frequency disturbance.
s0 = NWState(nw)
prob = ODEProblem(nw, uflat(s0), (0,100), pflat(s0), callback=get_callbacks(nw))
sol = solve(prob, Rodas5P())Visualizing the Results

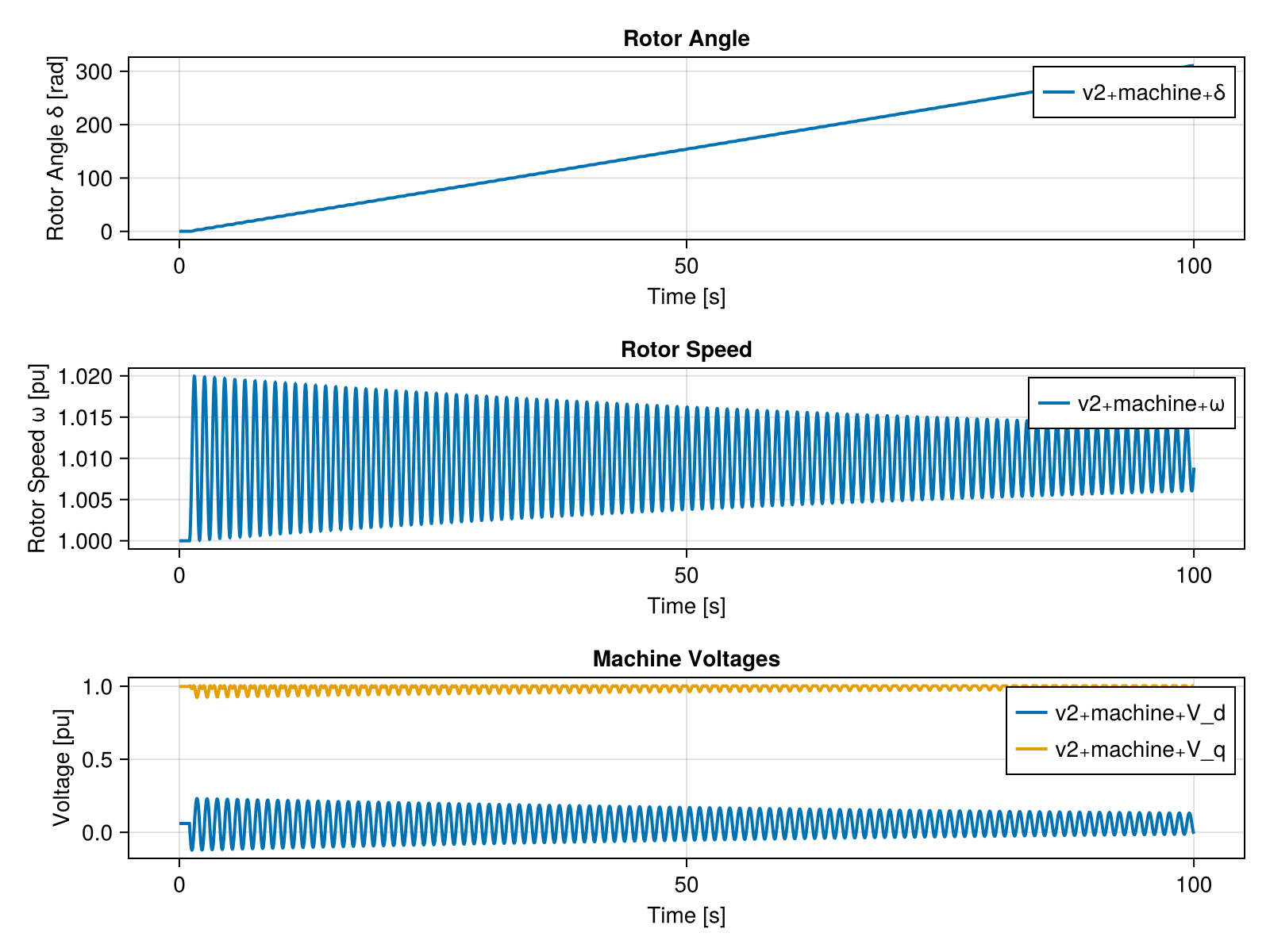

Now let's create comprehensive plots to visualize how our custom Milano machine responds to the frequency disturbance. We'll plot several key variables that demonstrate the machine's electromechanical dynamics.
let
fig = Figure(size=(800, 600));
ax1 = Axis(fig[1, 1];
title="Rotor Angle",
xlabel="Time [s]",
ylabel="Rotor Angle δ [rad]")
lines!(ax1, sol; idxs=VIndex(2, :machine₊δ), linewidth=2)
axislegend(ax1)
ax2 = Axis(fig[2, 1];
title="Rotor Speed",
xlabel="Time [s]",
ylabel="Rotor Speed ω [pu]")
lines!(ax2, sol; idxs=VIndex(2, :machine₊ω), linewidth=2)
axislegend(ax2)
ax3 = Axis(fig[3, 1];
title="Machine Voltages",
xlabel="Time [s]",
ylabel="Voltage [pu]")
lines!(ax3, sol; idxs=VIndex(2, :machine₊V_d), color=Cycled(1), linewidth=2)
lines!(ax3, sol; idxs=VIndex(2, :machine₊V_q), color=Cycled(2), linewidth=2)
axislegend(ax3)
fig
end
Observing the Poor Damping Problem
From the plots above, we can see that the Milano classical machine exhibits very lightly damped oscillations that persist for a very long time. The rotor angle and speed oscillate for hundreds of seconds without settling to a steady state.
This poor damping behavior occurs because:
- No damper windings: The model lacks electromagnetic damping mechanisms
- Constant field voltage: No dynamic response to help stabilize the machine
- No mechanical damping: The swing equation has no friction losses
The only source of damping here is, that we have specified a constant mechanical power rather than a constant mechanical torque.
To solve this problem, real power systems use control systems, particularly Power System Stabilizers (PSS) that are specifically designed to damp electromechanical oscillations.
Adding a Power System Stabilizer (PSS)
Let's create an improved machine model with controllable field voltage and add the simplest possible PSS to demonstrate the damping improvement.
The implemented PSS is a simple device, which adjusts the excitation voltage based on frequency deviation. It consists of a washout filter to remove steady-state errors and only react to frequency changes, and a gain to amplify the response.
To achieve this goal we will:
- Modify the Milano machine model to include a controllable field voltage input and a rotor frequency measurement output.
- Create a simple PSS model that takes the frequency input and outputs a stabilizing signal to the field voltage.
- Combine the machine and PSS into a new composite model that forms an injector.

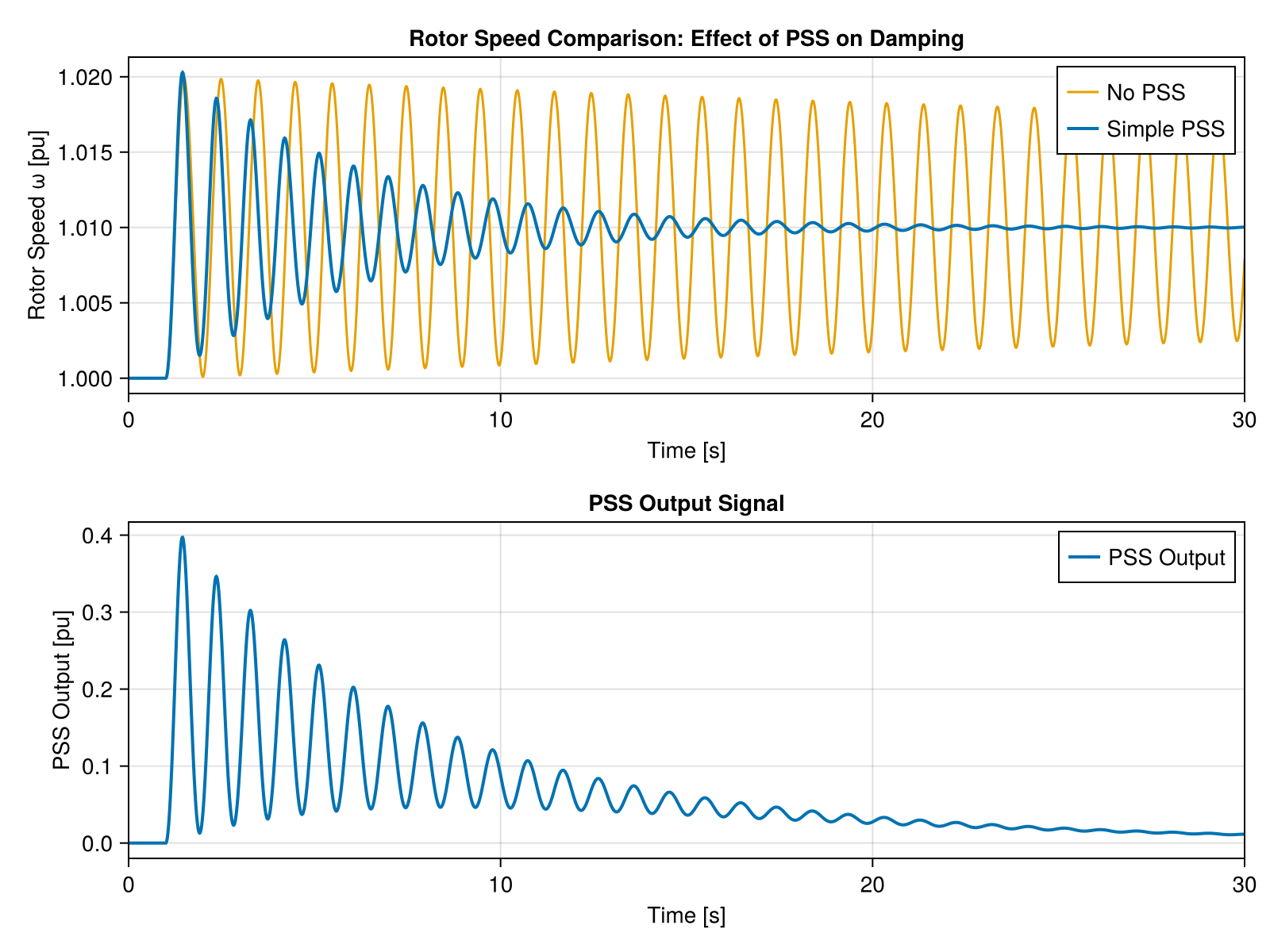

- Repeat the simulation above with our new controlled-generator model and compare the results.
Controllable Machine Model
First, we create a modified Milano machine with control inputs/outputs: vf_in for field voltage and ω_out for frequency output.
@mtkmodel MilanoControllableMachine begin
@components begin
terminal=Terminal()
# Control interface
vf_in = RealInput(guess=1) # field voltage input
ω_out = RealOutput() # frequency output for PSS
end
@parameters begin
R_s=0.000124, [description="stator resistance"]
X′_d=0.0608, [description="d-axis transient reactance"]
H=23.64, [description="inertia constant"]
ω_b=2π*50, [description="System base frequency in rad/s"]
P_m, [guess=1, description="mechanical power"]
end
@variables begin
δ(t), [guess=0, description="rotor angle"]
ω(t), [guess=1, description="rotor speed"]
τ_e(t), [description="electrical torque"]
I_d(t), [description="d-axis current"]
I_q(t), [description="q-axis current"]
V_d(t), [description="d-axis voltage"]
V_q(t), [description="q-axis voltage"]
ψ_d(t), [description="d-axis flux linkage"]
ψ_q(t), [description="q-axis flux linkage"]
end
begin
T_to_loc(α) = [ sin(α) -cos(α);
cos(α) sin(α)]
T_to_glob(α) = [ sin(α) cos(α);
-cos(α) sin(α)]
end
@equations begin
# Park's transformations
[terminal.u_r, terminal.u_i] .~ T_to_glob(δ)*[V_d, V_q]
[I_d, I_q] .~ T_to_loc(δ)*[terminal.i_r, terminal.i_i]
# mechanical swing equation Milano 15.5
Dt(δ) ~ ω_b*(ω - 1)
2*H * Dt(ω) ~ P_m/ω - τ_e
# static flux linkage equations Milano 15.11
ψ_d ~ V_q + R_s*I_q
ψ_q ~ -V_d - R_s*I_d
# electrical torque Milano 15.6
τ_e ~ ψ_d*I_q - ψ_q*I_d
# magnetic equations from static model Milano 15.36
0 ~ V_q + R_s*I_q + X′_d*I_d - vf_in.u # Use controllable input
0 ~ V_d + R_s*I_d - X′_d*I_q
# Control interface - output frequency for PSS
ω_out.u ~ ω
end
endSimple Power System Stabilizer
The simplest PSS consists of a washout filter with gain. The washout filter ensures the PSS only responds to frequency changes, not steady-state errors.
@mtkmodel SimplePSS begin
@components begin
ω_in = RealInput() # frequency input from machine
vst = RealOutput() # stabilizer output signal
end
@parameters begin
Tw=10, [description="washout time constant"]
Ks=20, [description="stabilizer gain"]
end
@variables begin
y(t), [guess=0, description="washout filter output"]
end
@equations begin
# Washout filter: dy/dt = (ω - y)/Tw
Dt(y) ~ (ω_in.u - y) / Tw
# output gain
vst.u ~ Ks * (ω_in.u - y)
end
endComplete Generator with PSS
The PSS only adds an offset to the field voltage based on the frequency input. Therefore, our combined injector model needs to look something like this:
┌───────────────────────────┐
│GeneratorWithPss │
│ ╭─────→─────╮ │
(t) │ ┌───────┴─┐ ω_out ┌─┴───┐ │
o──┼─┤ Machine │ │ PSS │ │
│ └───────┬─┘ └─┬───┘ │
│ vf_in ╰──←─(+)──←─╯ vst │
│ ↑ │
│ vf_base │
└───────────────────────────┘Notably, similar to how we left vf_set free for initialization in the previous example, now we need to leave vf_base free.
We define a new mtkmodel which combines machine with controller and forms a new injector:
@mtkmodel GeneratorWithPSS begin
@components begin
terminal = Terminal()
machine = MilanoControllableMachine()
pss = SimplePSS()
end
@parameters begin
vf_base, [guess=1.0, description="base field voltage"]
end
@equations begin
# Connect terminals
connect(terminal, machine.terminal)
# Connect control loop: machine frequency → PSS → back to machine field voltage
connect(machine.ω_out, pss.ω_in)
# Sum base field voltage with PSS output
machine.vf_in.u ~ vf_base + pss.vst.u
end
end
@named gen_with_pss = GeneratorWithPSS()
isinjectormodel(gen_with_pss) # Verify it's still an injectortrueSince this is an injector, we can use MTKBus(gen_with_pss) to build the symbolic bus model. However, this leads to another level of namespacing, as the overall bus will have variable names like gen_with_pss₊machine₊δ due to the encapsulation.
Alternatively, we could define a model which directly implements the MTKBus interface:
┌─────────────────────────────────────┐
│MyMTKBus │
│ ╭─────→─────╮ │
│┌──────┐ ┌───────┴─┐ ω_out ┌─┴───┐ │
││BusBar├─o─┤ Machine │ │ PSS │ │
│└──────┘ └───────┬─┘ └─┬───┘ │
│ vf_in ╰──←─(+)──←─╯ vst │
│ ↑ │
│ vf_base │
└─────────────────────────────────────┘@mtkmodel CustomMTKBus begin
@components begin
busbar = BusBar()
machine = MilanoControllableMachine()
pss = SimplePSS()
end
@parameters begin
vf_base, [guess=1.0, description="base field voltage"]
end
@equations begin
connect(busbar.terminal, machine.terminal)
connect(machine.ω_out, pss.ω_in)
machine.vf_in.u ~ vf_base + pss.vst.u
end
end
@named genbus_custom = CustomMTKBus()
@assert isbusmodel(genbus_custom)In practice, it doesn't really matter which approach you choose, as both will work. However this highlights the flexibility of the MTK modeling framework before you go to the compiled-model domain by calling Bus on the model fulfilling the MTKBus interface.
Simulation with PSS
Now let's run the same simulation scenario with the PSS-equipped generator to observe the damping improvement.
Create the improved generator bus with simple PSS
genbus_pss = Bus(
MTKBus(gen_with_pss; name=:bus_pss),
vidx=2,
pf=pfPV(V=1, P=1)
)VertexModel :bus_pss PureStateMap() @ Vertex 2
├─ 2 inputs: [busbar₊i_r, busbar₊i_i]
├─ 5 states: [gen_with_pss₊pss₊y≈0, gen_with_pss₊machine₊ω≈1, gen_with_pss₊machine₊δ≈0, busbar₊u_r=1, busbar₊u_i=0]
| with diagonal mass matrix [1, 1, 1, 0, 0]
├─ 2 outputs: [busbar₊u_r=1, busbar₊u_i=0]
└─ 8 params: [gen_with_pss₊vf_base≈1, gen_with_pss₊machine₊R_s=0.000124, gen_with_pss₊machine₊X′_d=0.0608, gen_with_pss₊machine₊H=23.64, gen_with_pss₊machine₊ω_b=314.16, gen_with_pss₊machine₊P_m≈1, gen_with_pss₊pss₊Tw=10, gen_with_pss₊pss₊Ks=20]
Powerflow model :pvbus with [pv₊P=1, pv₊V=1]Create network with PSS-equipped generator
nw_pss = Network([slackbus, genbus_pss], line)
initialize_from_pf!(nw_pss)Initializing vertex 1... => residual 0.0
Initializing vertex 2... => residual 1.3877787807814457e-17
Initializing edge 1... => residual 0.0
Initialized network with residual 1.3877787807814457e-17!Run simulation with simple PSS
s0_pss = NWState(nw_pss)
prob_pss = ODEProblem(nw_pss, uflat(s0_pss), (0,100), pflat(s0_pss), callback=get_callbacks(nw_pss))
sol_pss = solve(prob_pss, Rodas5P())Comparing Results: With and Without PSS
Let's create comparison plots to clearly see the damping improvement:
let
fig = Figure(size=(800, 600));
# Compare rotor speeds
ax1 = Axis(fig[1, 1];
title="Rotor Speed Comparison: Effect of PSS on Damping",
xlabel="Time [s]",
ylabel="Rotor Speed ω [pu]")
lines!(ax1, sol; idxs=VIndex(2, :machine₊ω), label="No PSS", color=Cycled(2))
lines!(ax1, sol_pss; idxs=VIndex(2, :gen_with_pss₊machine₊ω), label="Simple PSS", color=Cycled(1), linewidth=2)
axislegend(ax1, position=:rt)
xlims!(ax1, 0, 30) # Focus on first 30 seconds
# PSS Output - shows the actual stabilizer signal
ax2 = Axis(fig[2, 1];
title="PSS Output Signal",
xlabel="Time [s]",
ylabel="PSS Output [pu]")
lines!(ax2, sol_pss; idxs=VIndex(2, :gen_with_pss₊pss₊vst₊u), label="PSS Output", linewidth=2)
axislegend(ax2, position=:rt)
xlims!(ax2, 0, 30)
fig
end
This page was generated using Literate.jl.
