Linear Analysis of a 4-Bus System

This example can be downloaded as a normal Julia script here.

This example demonstrates eigenvalue analysis and impedance-based Bode analysis of a 4-bus EMT power system.

Synchronous Machine with Stator Dynamics

In order to replicate the results from SimplusGT we need to use identical or nearly identical models. Most of the models needed are present in our Library, but we still need to implement a custom machine model. Since modeling is not the focus of this tutorial, it is provided without further explanation.

using PowerDynamics
using PowerDynamics.Library
using PowerDynamics.Library.ComposableInverter
using ModelingToolkit
using ModelingToolkit: t_nounits as t, D_nounits as Dt
using OrdinaryDiffEqRosenbrock
using OrdinaryDiffEqNonlinearSolve
using NetworkDynamics
using CairoMakie

@mtkmodel SyncMachineStatorDynamics begin
    @components begin
        terminal = Terminal()
    end
    @parameters begin
        J, [description="Inertia constant [MWs²/MVA]"]
        D, [description="Damping coefficient [pu]"]
        wL, [description="Stator inductance * base frequency [pu]"]
        R, [description="Stator resistance [pu]"]
        ω0, [description="Base frequency [rad/s]"]
        psi_f, [guess=1, description="Field flux linkage [pu]"]
        T_m, [guess=1, description="Mechanical torque [pu]"]
    end
    @variables begin
        i_d(t), [guess=0, description="d-axis stator current [pu]"]
        i_q(t), [guess=1, description="q-axis stator current [pu]"]
        w(t), [guess=2*pi*50, description="Rotor speed deviation [rad/s]"]
        theta(t), [guess=0, description="Rotor angle [rad]"]
        v_d(t), [guess=1, description="d-axis terminal voltage [pu]"]
        v_q(t), [guess=0, description="q-axis terminal voltage [pu]"]
        psi_d(t), [guess=1, description="d-axis flux linkage [pu]"]
        psi_q(t), [guess=0, description="q-axis flux linkage [pu]"]
        Te(t), [guess=1, description="Electrical torque [pu]"]
    end
    begin
        J_pu = J*2/ω0^2
        D_pu = D/ω0^2
        L = wL/ω0
        T_to_loc(α)  = [ cos(α) sin(α);
                        -sin(α)  cos(α)]
        T_to_glob(α) = T_to_loc(-α)
    end
    @equations begin
        # output transformation (global dq/local dq)
        [terminal.i_r, terminal.i_i] .~ -T_to_glob(theta)*[i_d, i_q]
        [v_d, v_q] .~ T_to_loc(theta)*[terminal.u_r, terminal.u_i]
        # electromechanical equations
        psi_d ~ L*i_d
        psi_q ~ L*i_q - psi_f
        Te ~ psi_f * i_d
        Dt(i_d) ~ (v_d - R*i_d + w*psi_q)/L
        Dt(i_q) ~ (v_q - R*i_q - w*psi_d)/L
        # swing equation
        Dt(w) ~ (Te - T_m - D_pu*w)/J_pu
        Dt(theta) ~ w - ω0
    end
end

4-Bus Network Setup

The topology of the network looks like this:

       (~)
    2╺┯━┷━┯╸
      │   │   (GFL)
1╺┯━━━┿╸  │   ╺━┿━╸4
 (~)  │   │╭────╯
     ╺┷━┯━┷┷╸3
      (GFM)

We have 4 Buses in total, two of which have a synchronous machine connected, one has a grid forming droop inverter and one has a grid following inverter.

Since the devices are all natural current sources and we have explicit shunts at all buses (self-edges in SimplusGT data), we use current source modeling according to the docs on voltage and current sources. Specificially, we model each bus as a RC-shunt (the self-edge in SimplusGT), while the devices are connected to those shunt buses as current sources via LoopbackConnection components.

So in the end we get interconnected models of the following form. This is important for the definition of our perturbation ports later on.

               ╭────────────────┬───────────╮
               │        voltage │ u out     │
┏━━━━━━━━━━━━━━▽━━┓   ╔═════════△════════╗  │   ╔═══════════════╗
┃ Rest of Network ┃   ║ VertexModel:     ║  ╰───▷ Vertex-Model: ║
┃ - voltage in    ┃   ║  Shunt-Model     ║      ║  Device       ║
┃ - current out   ┃   ║ - current sum in ║      ║ - voltage in  ║
┗━━━━━━━━━━━━━━▽━━┛   ║ - voltage out    ║  ╭───◁ - current out ║
               │      ╚═════════△════════╝  │   ╚═══════════════╝
       current │ i out        ╭─┴─╮         │  (direct connection via loopback)
               ╰──────────────▷ + ◁─────────╯
                              ╰───╯

With that we can start defining the actual models. For each model we define:

• a shunt bus (dynamic shunt model, static shunt model for powerflow),
• a device bus (machine or inverter model, Slack, PV or PQ model for powerflow) and
• a loopback connection connecting the current-source device to the shunt bus.

Bus 1 & 2: Synchronous Generators

Bus 1 and 2 are modeled using the previously defined SyncMachineStatorDynamics model. The parameters are taken from the SimplusGT example. During powerflow, the first machine is modeled as a slack bus, the second one as a PV bus. In both cases, we use current source modeling and connect the device to a dynamic shunt bus (which acts like a static shunt during powerflow).

ω0 = 2π*50
sg1_bus, bus1, loop1 = let
    @named sm = SyncMachineStatorDynamics(J=3.5, D=1, wL=0.05, R=0.01, ω0=ω0)
    @named sg1_bus = compile_bus(MTKBus(sm); current_source=true)
    set_pfmodel!(sg1_bus, pfSlack(V=1, δ=0; current_source=true, assume_io_coupling=true))

    @named shunt = DynamicParallelRCShunt(R=1/0.6, C=1e-5, ω0=ω0)
    @named bus1 = compile_bus(MTKBus(shunt))
    set_pfmodel!(bus1, pfShunt(G=0.6, B=1e-5))

    loop1 = LoopbackConnection(; potential=[:u_r, :u_i], flow=[:i_r, :i_i], src=:sg1_bus, dst=:bus1)

    sg1_bus, bus1, loop1
end

sg2_bus, bus2, loop2 = let
    @named sm = SyncMachineStatorDynamics(J=3.5, D=1, wL=0.05, R=0.01, ω0=ω0)
    @named sg2_bus = compile_bus(MTKBus(sm); current_source=true)
    set_pfmodel!(sg2_bus, pfPV(P=0.5, V=1; current_source=true, assume_io_coupling=true))

    @named shunt = DynamicParallelRCShunt(R=1/0.6, C=1e-5, ω0=ω0)
    @named bus2 = compile_bus(MTKBus(shunt))
    set_pfmodel!(bus2, pfShunt(G=0.6, B=1e-5))

    loop2 = LoopbackConnection(; potential=[:u_r, :u_i], flow=[:i_r, :i_i], src=:sg2_bus, dst=:bus2)

    sg2_bus, bus2, loop2
end

Bus 3: Grid-Forming Inverter

The GFM uses a DroopInverter with an LCL filter and cascaded PI controllers for current and voltage. The parameters are converted from SimplusGT bandwidth conventions, where frequency bandwidths are mapped to PI gains, and cross-coupling feedforward is disabled (Fcoupl=0) to match the MATLAB reference.

The GFM acts like a PV bus during powerflow and is once again modeled as a current injector connected to a dynamic shunt bus.

gfm_bus, bus3, loop3 = let
    xwLf=0.05; Rf=0.01; xwCf=0.02; xwLc=0.01; Rc=0.002
    Xov=0.01; xDw=0.05; xfdroop=5; xfvdq=300; xfidq=600

    @named droop = ComposableInverter.DroopInverter(;
        filter_type = :LCL,
        droop₊Qset = 0,
        droop₊Kp = xDw*ω0,
        droop₊ω0 = ω0,
        droop₊Kq = 0,
        droop₊τ_q = Inf,
        droop₊τ_p = 1/(xfdroop*2*pi),
        vsrc₊CC1_F = 0,
        vsrc₊CC1_KI = (xfidq*2*pi)^2*(xwLf/ω0)/4,
        vsrc₊CC1_KP = (xfidq*2*pi)*(xwLf/ω0),
        vsrc₊CC1_Fcoupl = 0,
        vsrc₊VC_KP = (xfvdq*2*pi)*(xwCf/ω0),
        vsrc₊VC_KI = (xfvdq*2*pi)^2*(xwCf/ω0)/4*50,
        vsrc₊VC_F = 0,
        vsrc₊VC_Fcoupl = 0,
        vsrc₊X_virt = Xov,
        vsrc₊R_virt = 0,
        vsrc₊Lg = xwLc,
        vsrc₊C = xwCf,
        vsrc₊Rf = Rf,
        vsrc₊Lf = xwLf,
        vsrc₊ω0 = ω0,
        vsrc₊Rg = Rc,
    )
    @named gfm_bus = compile_bus(MTKBus(droop); current_source=true)
    set_pfmodel!(gfm_bus, pfPV(P=0.5, V=1; current_source=true, assume_io_coupling=true))

    @named shunt = DynamicParallelRCShunt(R=1/0.75, C=1e-5, ω0=ω0)
    @named bus3 = compile_bus(MTKBus(shunt))
    set_pfmodel!(bus3, pfShunt(G=0.75, B=1e-5))

    loop3 = LoopbackConnection(; potential=[:u_r, :u_i], flow=[:i_r, :i_i], src=:gfm_bus, dst=:bus3)

    gfm_bus, bus3, loop3
end

Bus 4: Grid-Following Inverter

The GFL uses a SimpleGFLDC model with DC-link dynamics, L filter, PLL with low-pass filter, and current controller. The parameters are obtained from the SimplusGT model. During powerflow, the GFL acts like a PQ bus.

gfl_bus, bus4, loop4 = let
    V_dc=2.5; C_dc=1.25; f_v_dc=5
    xwLf=0.03; Rf=0.01
    f_pll=5; f_tau_pll=300; f_i_dq=600

    @named gfl = ComposableInverter.SimpleGFLDC(;
        ω0 = ω0,
        Lf = xwLf,
        Rf = Rf,
        PLL_Kp = f_pll*2*pi,
        PLL_Ki = (f_pll*2*pi)^2/4,
        PLL_τ_lpf = 1/(f_tau_pll*2*pi),
        CC1_KP = (xwLf/ω0) * (f_i_dq*2*pi),
        CC1_KI = (xwLf/ω0) * (f_i_dq*2*pi)^2 / 4,
        CC1_F = 0,
        CC1_Fcoupl = 0,
        C_dc = C_dc,
        V_dc = V_dc,
        kp_v_dc = V_dc*C_dc*(f_v_dc*2*pi),
        ki_v_dc = V_dc*C_dc*(f_v_dc*2*pi) * (f_v_dc*2*pi)/4,
    )
    @named gfl_bus = compile_bus(MTKBus(gfl); current_source=true)
    set_pfmodel!(gfl_bus, pfPQ(P=0.5, Q=-0.2; current_source=true))

    @named shunt = DynamicParallelRCShunt(R=1/0.05, C=1e-5, ω0=ω0)
    @named bus4 = compile_bus(MTKBus(shunt))
    set_pfmodel!(bus4, pfShunt(G=0.05, B=1e-5))

    loop4 = LoopbackConnection(; potential=[:u_r, :u_i], flow=[:i_r, :i_i], src=:gfl_bus, dst=:bus4)

    gfl_bus, bus4, loop4
end

Transmission Lines

All lines use DynamicSeriesRLBranch (dynamic RL in the rotating dq-frame). Line 3→4 includes a turns ratio of 0.99 in accordance with the SimplusGT model. Static PiLine models are attached for the power flow solver.

line12 = let
    @named branch = DynamicSeriesRLBranch(R=0.01, L=0.3, ω0=ω0)
    lm = compile_line(MTKLine(branch); name=:l12, src=:bus1, dst=:bus2)
    @named branch_pf = PiLine(R=0.01, X=0.3)
    pfmod = compile_line(MTKLine(branch_pf); name=:l12_pfmod)
    set_pfmodel!(lm, pfmod)
    lm
end

line23 = let
    @named branch = DynamicSeriesRLBranch(R=0.01, L=0.3, ω0=ω0)
    lm = compile_line(MTKLine(branch); name=:l23, src=:bus2, dst=:bus3)
    @named branch_pf = PiLine(R=0.01, X=0.3)
    pfmod = compile_line(MTKLine(branch_pf); name=:l23_pfmod)
    set_pfmodel!(lm, pfmod)
    lm
end

line31 = let
    @named branch = DynamicSeriesRLBranch(R=0.01, L=0.3, ω0=ω0)
    lm = compile_line(MTKLine(branch); name=:l31, src=:bus3, dst=:bus1)
    @named branch_pf = PiLine(R=0.01, X=0.3)
    pfmod = compile_line(MTKLine(branch_pf); name=:l31_pfmod)
    set_pfmodel!(lm, pfmod)
    lm
end

line34 = let
    @named branch = DynamicSeriesRLBranch(R=0.01, L=0.3, ω0=ω0, r_dst=0.99)
    lm = compile_line(MTKLine(branch); name=:l34, src=:bus3, dst=:bus4)
    @named branch_pf = PiLine(R=0.01, X=0.3, r_dst=0.99)
    pfmod = compile_line(MTKLine(branch_pf); name=:l34_pfmod)
    set_pfmodel!(lm, pfmod)
    lm
end

Network Assembly and Initialization

We assemble the network from 8 vertex models (4 device buses + 4 network buses), 4 loopback connections, and 4 transmission lines.

After defining the network we solve the powerflow and initialize the dynamic states at the powerflow solution. This is the operating point around which we will analyze the system.

nw = Network([sg1_bus, bus1, sg2_bus, bus2, gfm_bus, bus3, gfl_bus, bus4],
    [loop1, loop2, loop3, loop4, line12, line23, line31, line34]; warn_order=false)

pfs = solve_powerflow(nw; abstol=1e-10, reltol=1e-10)
s0 = initialize_from_pf!(nw; pfs, tol=1e-7, nwtol=1e-7)

Initialize VIndex(1) -> 6.114655223365241e-15
Initialize VIndex(2) -> 4.2315738567606557e-10
Initialize VIndex(3) -> 2.2640520640733482e-14
Initialize VIndex(4) -> 5.120412652869021e-10
Initialize VIndex(5) -> 8.944416269384488e-13
Initialize VIndex(6) -> 1.17030094251339e-8
Initialize VIndex(7) -> 1.651700755064424e-12
Initialize VIndex(8) -> 1.41779809440649e-8
Initialize EIndex(1) -> 0.0
Initialize EIndex(2) -> 1.5757357078607168e-16
Initialize EIndex(3) -> 0.0
Initialize EIndex(4) -> 6.240178189820104e-15
Initialize EIndex(5) -> 0.0
Initialize EIndex(6) -> 7.198844511193468e-15
Initialize EIndex(7) -> 4.019578521369299e-14
Initialize EIndex(8) -> 0.0
Initialized network with residual 4.621184842008005e-8!

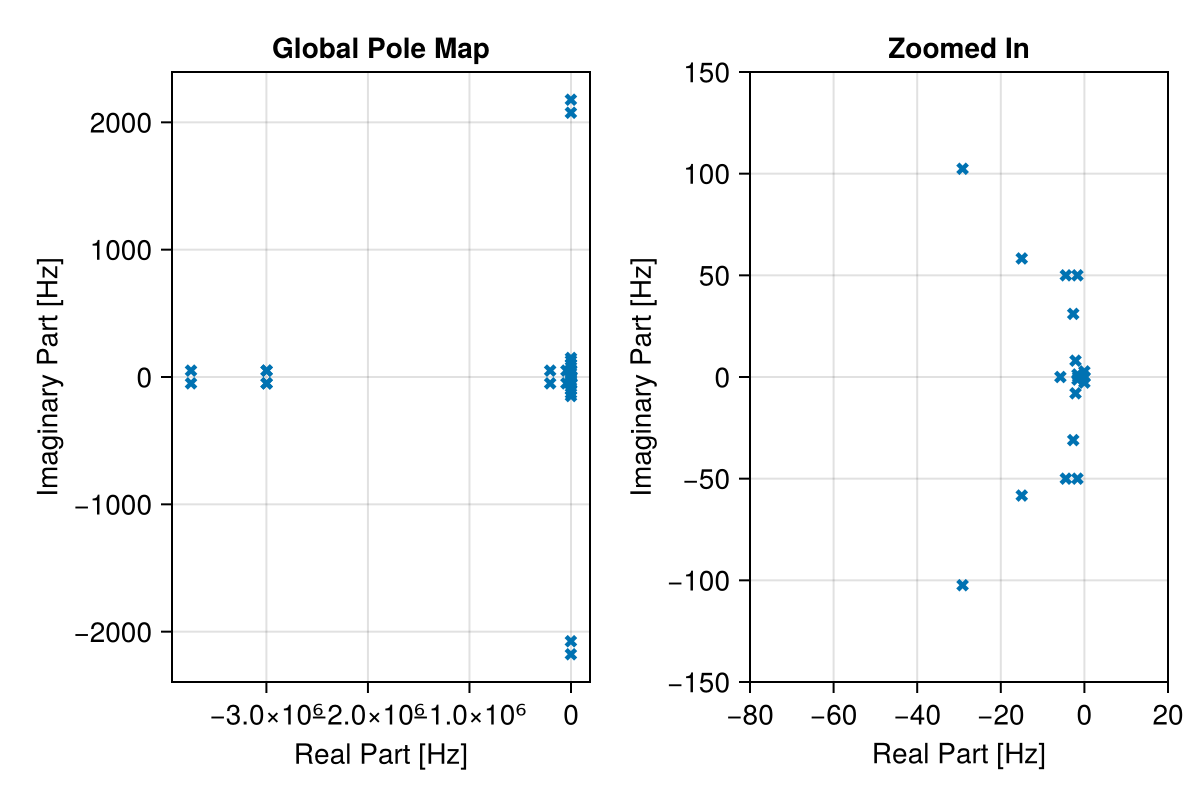

Eigenvalue Analysis

The ND.jl function jacobian_eigenvals linearizes the system around an operation point, eliminates algebraic constraints via Schur complement, and returns the eigenvalues of the reduced state matrix. We divide by $2\pi$ to convert from rad/s to Hz. We plot the eigenvalues in the complex plane to get the global pole map of the system.

eigenvalues = jacobian_eigenvals(s0) ./ (2 * pi)

46-element Vector{ComplexF64}:
 -3.7426524047789145e6 - 49.99999999881818im
 -3.7426524047789145e6 + 49.99999999881818im
  -2.998054079741751e6 - 49.99999999999252im
  -2.998054079741751e6 + 49.99999999999252im
  -2.997497907153569e6 - 50.00000000047425im
  -2.997497907153569e6 + 50.00000000047425im
   -205304.73448214168 - 50.00016871033639im
   -205304.73448214168 + 50.00016871033639im
     -45279.4735559211 - 49.99857780813103im
     -45279.4735559211 + 49.99857780813103im
                       ⋮
   -1.6666666666670584 + 49.99999999999982im
     -1.65358482333949 - 1.2629827797782514im
     -1.65358482333949 + 1.2629827797782514im
   -1.5076610387056537 + 0.0im
   -0.2559252933433361 + 0.0im
 -0.007794285507523471 - 2.748665769181891im
 -0.007794285507523471 + 2.748665769181891im
                  -0.0 + 0.0im
   4.33193671617071e-9 + 0.0im

fig = let
    fig = Figure(size=(600,400))
    ax1 = Axis(fig[1, 1], xlabel="Real Part [Hz]", ylabel="Imaginary Part [Hz]", title="Global Pole Map")
    scatter!(ax1, real.(eigenvalues), imag.(eigenvalues), marker=:xcross)
    ax2 = Axis(fig[1, 2], xlabel="Real Part [Hz]", ylabel="Imaginary Part [Hz]", title="Zoomed In")
    scatter!(ax2, real.(eigenvalues), imag.(eigenvalues), marker=:xcross)
    xlims!(ax2, -80, 20); ylims!(ax2, -150, 150)
    fig
end;

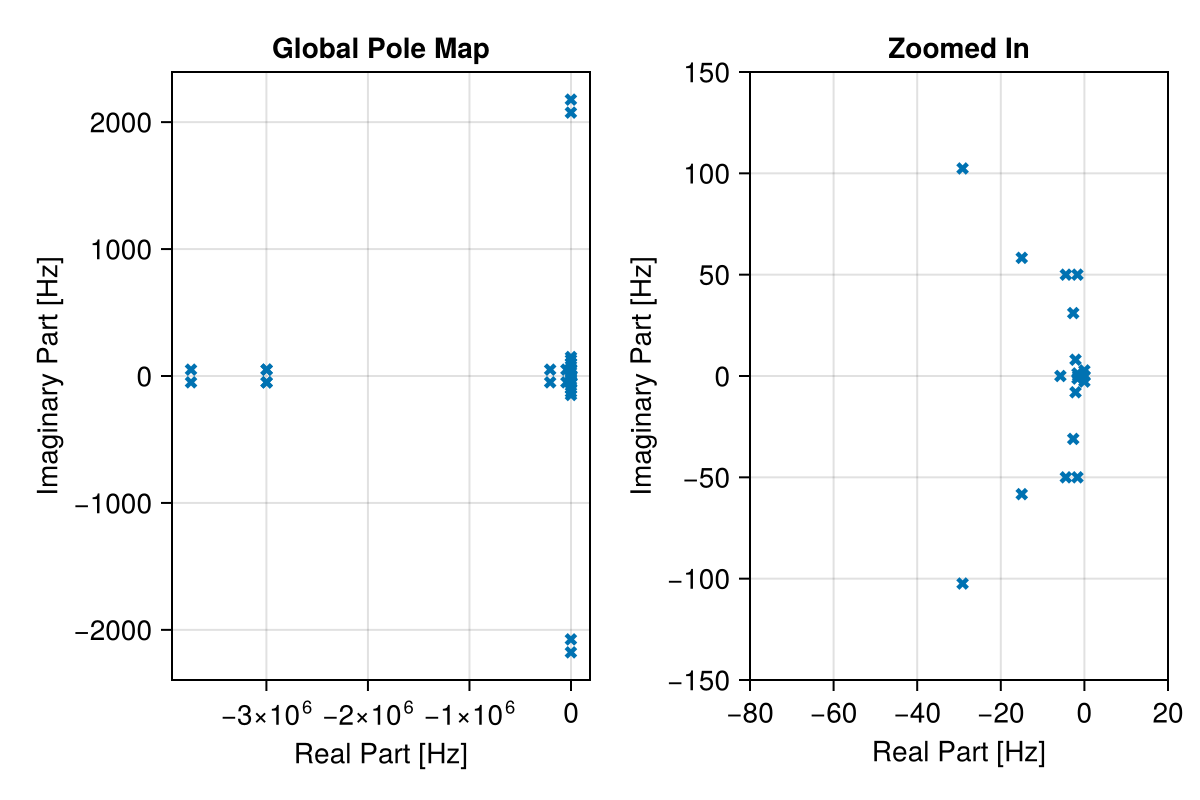

The results match what we get from SimplusGT for that system.

Impedance-Based Bode Analysis

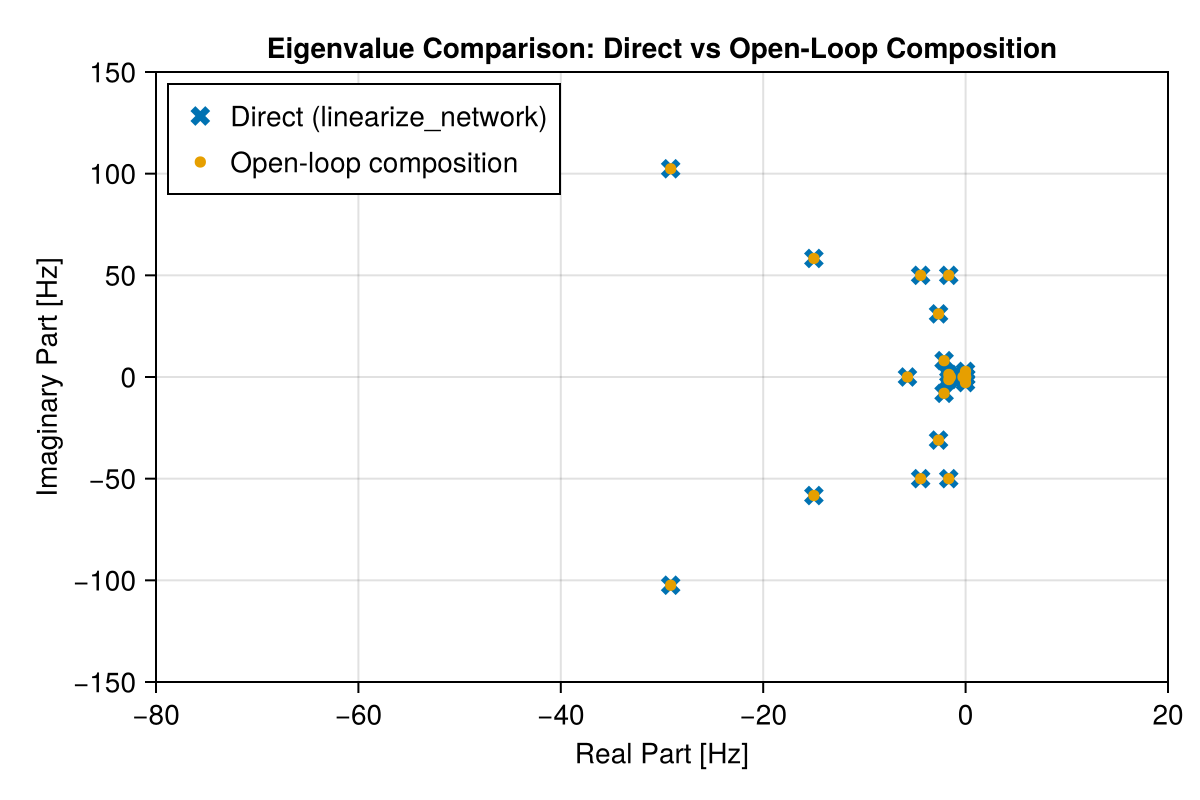

SimplusGT models each device as a transfer function from bus voltage to injected current: the device admittance $G(s)$. To get a closed loop model, they add feedback through the network impedance matrix $Z(s)$. For impedance-based stability analysis, they directionally perturb the voltage input of a device without perturbing that voltage point in the network – effectively opening the loop at that bus.

             (Admittance-like)
            ╭────────────────╮
δu_dq╶─→●──→┤ Device TF G(s) ├→───●──╴ i_dq
        │   ╰────────────────╯    │
        │                         │
        │   ╭────────────────╮    │
(bus    ╰──←┤  Grid TF Z(s)  ├←───╯
 voltage)   ╰────────────────╯
             (Impedance-like)

This kind of analysis can be replicated using the linearize_network function while providing the in and out keyword arguments. With in it is possible to specify the perturbation port, out defines the observed state under this perturbation.

Perturbation in the linearization sense is directed; our device models however are fully acausal, there is no directionality within their definition. Therefore we are a bit restricted in the choice of perturbation channel: it has to be a "connection" between network components, i.e. either a vertex input, a vertex output, an edge input or an edge output.

Considering the component interconnection on the network level sketched out above, we have 6 channels for directional perturbation injection, 4 of which are unique:

               ╭────────────────┬───────────╮
        δu_in →∙        δu_out →∙           ∙← δu_in
        (line) │         (hub)  │           │ (device)
┏━━━━━━━━━━━━━━▽━━┓   ╔═════════△════════╗  │   ╔═══════════════╗
┃ Rest of Network ┃   ║ Shunt-Model      ║  ╰───▷ Device-Model  ║
┃ - voltage in    ┃   ║ - current sum in ║      ║ - voltage in  ║
┃ - current out   ┃   ║ - voltage out    ║  ╭───◁ - current out ║
┗━━━━━━━━━━━━━━▽━━┛   ╚═════════△════════╝  │   ╚═══════════════╝
       δi_out →∙        δi_out →∙           ∙← δi_out
       (line)  │        (hub) ╭─┴─╮         │ (device)
               ╰──────────────▷ + ◁─────────╯
                              ╰───╯

• δu_in (line): Perturbation of the voltage at the line side (perturbs line)
• δu_out (hub): Perturbation of the voltage at the hub output (influences both device and line)
• δu_in (device): Perturbation of the voltage at the device input (perturbs device)
• δi_out (line), δi_out (hub) and δi_out (device): Perturbation of the current before or after aggregation. Mathematically equivalent, as all affect only the hub input either way.

The linearization of the full, nonlinear system $\mathrm{M} \dot{x} = f(x)$ is done via automatic differentiation around the operating point $x_0$ with respect to the input and output channels $u$ and $y$ as defined by the in and out arguments. This results in a linear descriptor system of the form

\[\begin{aligned} \mathrm{M} \dot{x} &= \frac{\partial f}{\partial x}\bigg|_{x_0}\delta x + \frac{\partial f}{\partial u}\bigg|_{x_0}\delta u &= \mathrm{A} \delta x + \mathrm{B}\delta u\\ \delta y &= \frac{\partial g}{\partial x}\bigg|_{x_0}\delta x + \frac{\partial g}{\partial u}\bigg|_{x_0}\delta u &= \mathrm{C} \delta x + \mathrm{D}\delta u \end{aligned}\]

$d$-Component Bus Admittance $Y_{dd}$

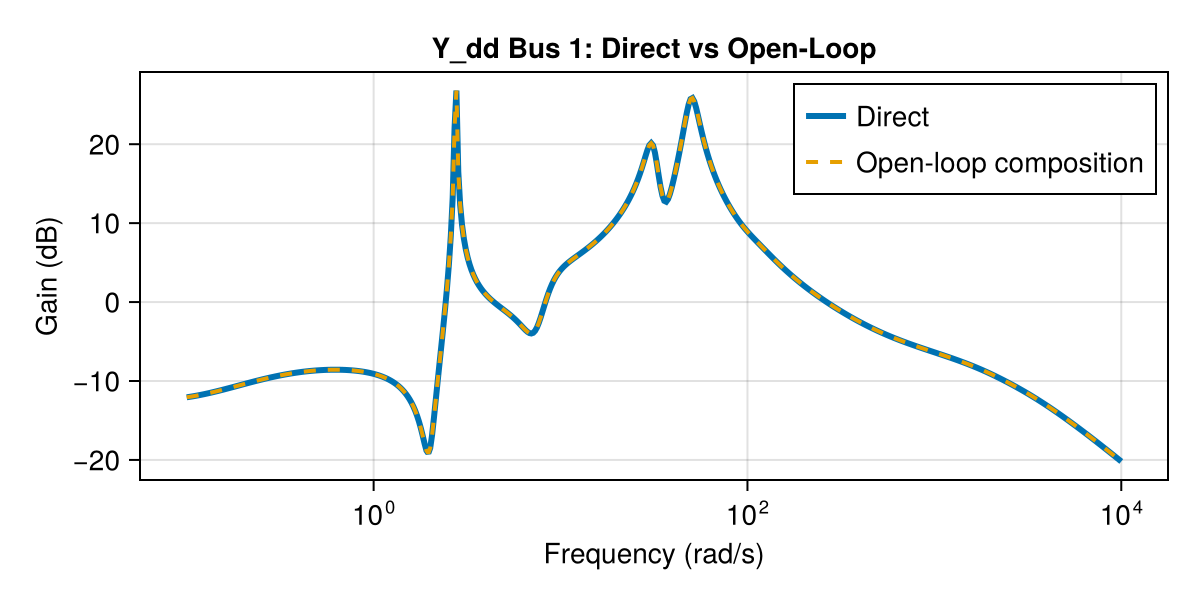

First, we are interested in the $Y_{dd}(s)$ admittance, which is the transfer function from δu_in (device) to the device output. I.e. we perturb the input voltage for the device model and observe the change in current output. This is directly equivalent to the ports used in SimplusGT shown above.

Since we are only interested in $Y_{dd}$ for now, we get away with a SISO system. We just specify a single perturbation and a single observed channel:

sys = linearize_network(
    s0;
    in=VIndex(:sg1_bus, :busbar₊u_r),  # <- dertermines where the perturbation enters
    out=VIndex(:sg1_bus, :busbar₊i_r), # <- determines which output we observe
)

NetworkDescriptorSystem with
 ├─ 46 states
 ├─  1 input:  VIndex(:sg1_bus, :busbar₊u_r)
 └─  1 output: VIndex(:sg1_bus, :busbar₊i_r)

The return value is a NetworkDescriptorSystem, which is a relatively simple wrapper around the matrices of a linearized system. In addition to accessing the matrices via sys.A, sys.B, sys.C and sys.D, the system also acts like a transfer function which can be evaluated at a complex frequency:

sys(im * 2π*50)

19.448992762891475 - 2.065340289227226im

NetworkDynamics/PowerDynamics itself does not provide lots of functionality around LTIs. However you may just access the system matrices sys.A and so on to construct systems from specialized libraries such as ControlSystems.jl or DescriptorSystems.jl, or you can directly work with the matrices for your own custom analysis. Since we just want to generate a bode plot, we avoid additional dependencies in this example and sample and plot the transferfunction manually.

First, we need to obtain the admittance transfer functions for all 4 devices, then we can generate the bode plot.

Gs = map([:sg1_bus, :sg2_bus, :gfm_bus, :gfl_bus]) do COMP
    vs = VIndex(COMP, :busbar₊u_r)
    cs = VIndex(COMP, :busbar₊i_r)
    G = NetworkDynamics.linearize_network(s0; in=vs, out=cs)
end

fig = with_theme(Theme(palette = (; color = Makie.wong_colors()[[1, 6, 2, 4]]))) do
    # we use the theme to get closer to matlab colors
    fig = Figure(; size=(800, 600))
    Label(fig[1, 1], "Y_{dd} Bode Plot", halign=:center, tellwidth=false)
    ax1 = Axis(fig[2, 1], xlabel="Frequency (rad/s)", ylabel="Gain (dB)", xscale=log10)
    ax2 = Axis(fig[3, 1], xlabel="Frequency (rad/s)", ylabel="Phase (deg)", xscale=log10)
    labels=["Bus $i" for i in 1:length(Gs)]
    for (G, label) in zip(Gs, labels)
        fs = 10 .^ (range(log10(1e-1), log10(1e4); length=1000))
        jωs = 2π * fs * im
        gains = map(s -> 20 * log10(abs(G(s))), jωs)
        phases = rad2deg.(unwrap_rad(map(s -> angle(G(s)), jωs)))
        lines!(ax1, fs, gains; label, linewidth=2)
        lines!(ax2, fs, phases; label, linewidth=2)
    end
    axislegend(ax1)
    fig
end

There is a small difference in the unwrapping algorithm, but besides that we nicely replicate the results from SimplusGT.

Complex Bus Admittance $Y_{dq+}$

The $Y_{dd}$ plot above shows only the d-axis to d-axis coupling. To analyze sequence-dependent behavior, we transform the full 2×2 dq admittance matrix into complex vector form.

In the dq-frame, the admittance is a 2×2 real-valued transfer function matrix:

\[\mathbf{Y}_{dq}(s) = \begin{bmatrix} Y_{dd}(s) & Y_{dq}(s) \\ Y_{qd}(s) & Y_{qq}(s) \end{bmatrix}\]

We apply the complex vector transformation:

\[\mathbf{Y}_{\text{complex}}(s) = \mathbf{T} \cdot \mathbf{Y}_{dq}(s) \cdot \mathbf{T}^{-1}\]

where

\[\mathbf{T} = \begin{bmatrix} 1 & \phantom{-}j \\ 1 & -j \end{bmatrix}, \quad \mathbf{T}^{-1} = \frac{1}{2}\begin{bmatrix} \phantom{-}1 & 1 \\ -j & j \end{bmatrix}\]

The resulting matrix separates positive and negative sequence components:

\[\mathbf{Y}_{\text{complex}}(s) = \begin{bmatrix} Y_{dq+}(s) & Y_{+-}(s) \\ Y_{-+}(s) & Y_{dq-}(s) \end{bmatrix}\]

where:

• $Y_{dq+}(s)$ is the positive sequence (forward-rotating) admittance
• $Y_{dq-}(s)$ is the negative sequence (backward-rotating) admittance
• Off-diagonal terms represent sequence coupling

For a perfectly balanced, symmetric system, $Y_{dq+}(j\omega) = Y_{dq+}(-j\omega)$. However, systems with PLLs, rotating reference frames, or sequence-dependent control exhibit asymmetry: $Y_{dq+}(j\omega) \neq Y_{dq+}(-j\omega)$. This is why we plot over both positive and negative frequencies.

First, we map over all devices again, get the full $u_{dq} \mapsto i_{dq}$ transfer function and then calculate $Y_{dq+}$ from it. This time we need to include both r and i components in the perturbation channel in and the observed channel out.

Gs_dqplus = map([:sg1_bus, :sg2_bus, :gfm_bus, :gfl_bus]) do COMP
    vs = [VIndex(COMP, :busbar₊u_r), VIndex(COMP, :busbar₊u_i)]
    cs = [VIndex(COMP, :busbar₊i_r), VIndex(COMP, :busbar₊i_i)]
    G = NetworkDynamics.linearize_network(s0; in=vs, out=cs)
    # Complex vector transformation
    T = [1.0 1.0im; 1.0 -1.0im]
    Tinv = inv(T)
    # Return positive sequence admittance Y_dq+(s)
    (s) -> (T * G(s) * Tinv)[1,1]
end

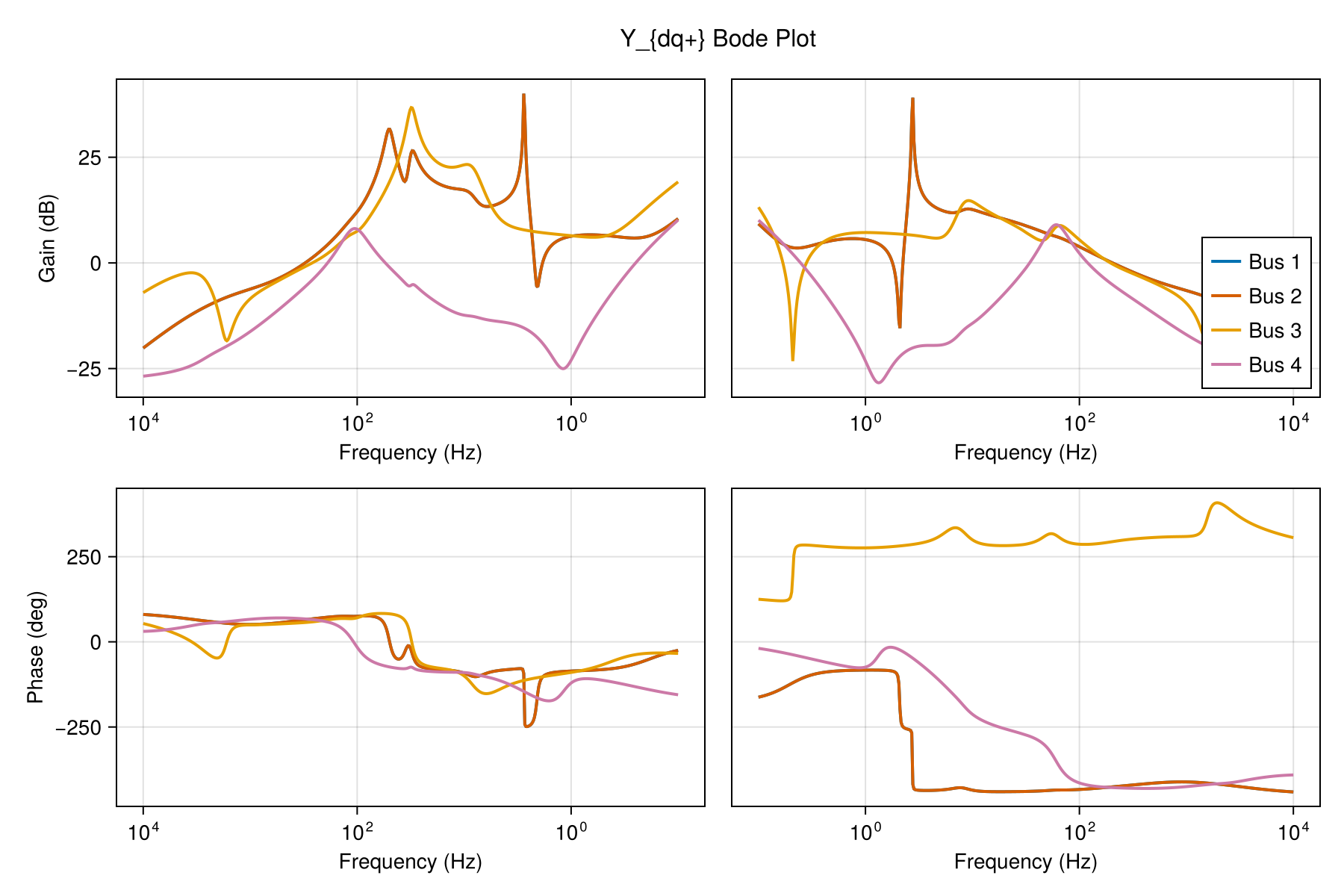

In the last line we only took the $Y_{dq+}$ from the resulting $2 \times 2$ matrix, since $Y_{dq+}(j\,\omega) = Y_{dq-}(-j\,\omega)$ and we can obtain both positive and negative sequence plots from the same matrix element.

fig = with_theme(Theme(palette = (; color = Makie.wong_colors()[[1, 6, 2, 4]]))) do
    fig = Figure(; size=(900, 600))
    Label(fig[0, 1:2], "Y_{dq+} Bode Plot", fontsize=16, halign=:center, tellwidth=false)

    # Create 2×2 grid: [magnitude_neg, magnitude_pos; phase_neg, phase_pos]
    ax_mag_neg = Axis(fig[1, 1], xlabel="Frequency (Hz)", ylabel="Gain (dB)",
                      xscale=log10, xreversed=true)
    ax_mag_pos = Axis(fig[1, 2], xlabel="Frequency (Hz)",
                      xscale=log10, yticklabelsvisible=false, yticksvisible=false)
    ax_phase_neg = Axis(fig[2, 1], xlabel="Frequency (Hz)", ylabel="Phase (deg)",
                        xscale=log10, xreversed=true)
    ax_phase_pos = Axis(fig[2, 2], xlabel="Frequency (Hz)",
                        xscale=log10, yticklabelsvisible=false, yticksvisible=false)

    labels = ["Bus $i" for i in 1:length(Gs_dqplus)]
    for (G, label) in zip(Gs_dqplus, labels)
        fs_pos = 10 .^ (range(log10(1e-1), log10(1e4); length=500))
        fs_neg = fs_pos
        jωs_pos = 2π * fs_pos * im
        jωs_neg = -2π * fs_neg * im

        gains_pos = map(s -> 20 * log10(abs(G(s))), jωs_pos)
        gains_neg = map(s -> 20 * log10(abs(G(s))), jωs_neg)
        phases_pos = rad2deg.(unwrap_rad(map(s -> angle(G(s)), jωs_pos)))
        phases_neg = rad2deg.(unwrap_rad(map(s -> angle(G(s)), jωs_neg)))

        # Plot negative frequencies (reversed x-axis)
        lines!(ax_mag_neg, fs_neg, gains_neg; label, linewidth=2)
        lines!(ax_phase_neg, fs_neg, phases_neg; label, linewidth=2)

        # Plot positive frequencies
        lines!(ax_mag_pos, fs_pos, gains_pos; label, linewidth=2)
        lines!(ax_phase_pos, fs_pos, phases_pos; label, linewidth=2)
    end

    axislegend(ax_mag_pos; position=:rb)
    linkyaxes!(ax_mag_neg, ax_mag_pos)
    linkyaxes!(ax_phase_neg, ax_phase_pos)
    fig
end

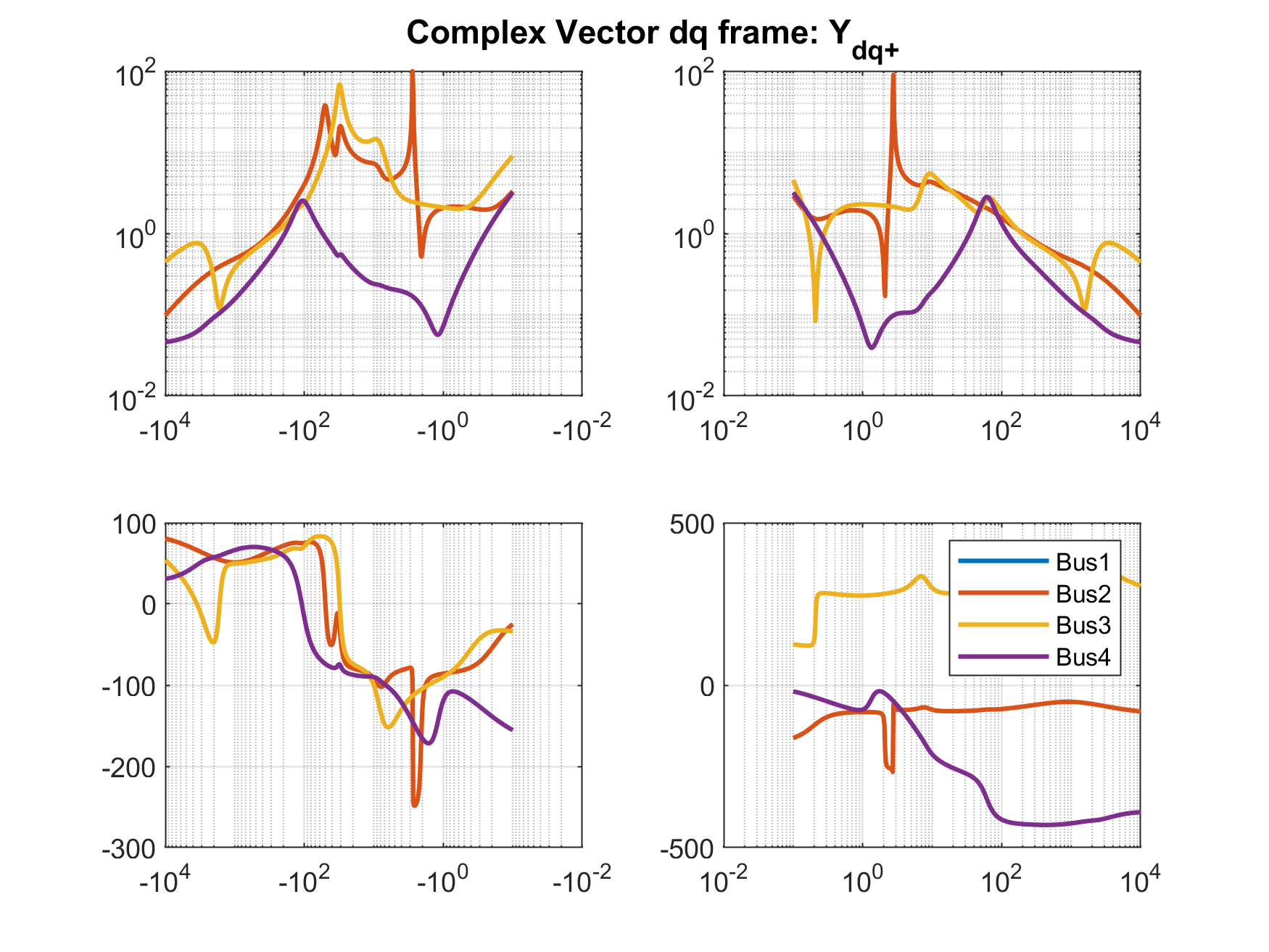

Once again we match the results obtained from SimplusGT for the same analysis.

Time-Domain Simulation

Since we have the full nonlinear model at hand, let's also do a time-domain simulation. To perturb the system, we apply a three-phase short circuit at Bus 1 by reducing the shunt resistance to near zero for a short time. The fault starts at 0.1s and is cleared at 0.2s.

affect = ComponentAffect([], [:shunt₊R]) do u, p, ctx
    if ctx.t == 0.1
        println("Short Circuit at Bus 1 at t=0.1s")
        p[:shunt₊R] = 1e-6
    elseif ctx.t == 0.2
        println("Clearing Short Circuit at Bus 1 at t=0.2s")
        p[:shunt₊R] = 1/0.6
    end
end
short = PresetTimeComponentCallback([0.1, 0.2], affect)
prob = ODEProblem(nw, s0, (0,30); add_comp_cb=VIndex(:bus1)=>short)
sol = solve(prob, Rodas5P())

Short Circuit at Bus 1 at t=0.1s
Clearing Short Circuit at Bus 1 at t=0.2s

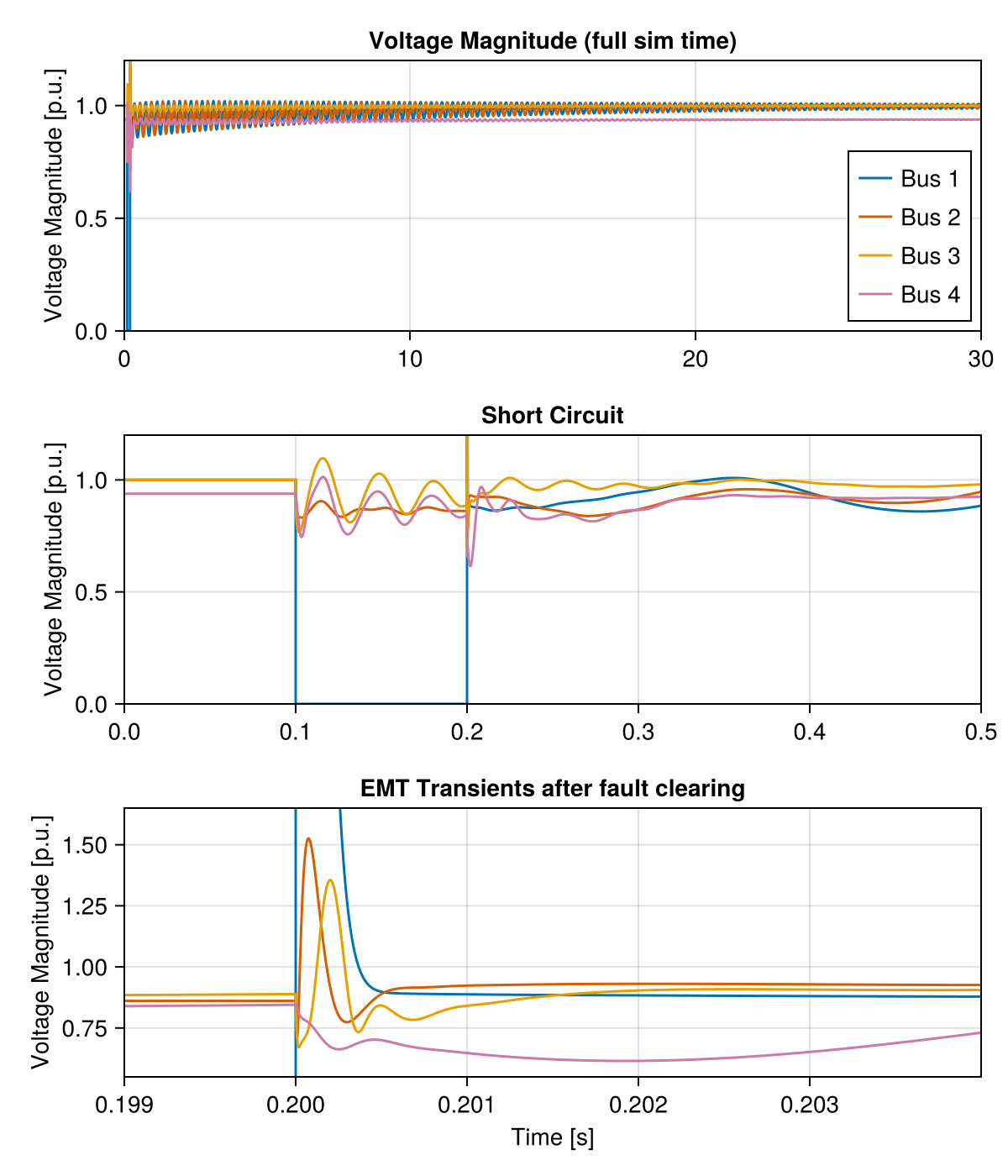

Let's compare the results against a similar EMT simulation done in the Simulink model generated by SimplusGT.

fig = with_theme(Theme(palette = (; color = Makie.wong_colors()[[1, 6, 2, 4]]))) do
    fig = Figure(size=(600,700))
    ts = refine_timeseries(sol.t)
    xlabel = "Time [s]"
    ylabel = "Voltage Magnitude [p.u.]"
    ax1 = Axis(fig[1,1]; title="Voltage Magnitude (full sim time)", limits=((0,30), (0.0, 1.2)), ylabel)
    lines!(ax1, ts, sol(ts, idxs=VIndex(:bus1, :busbar₊u_mag)).u; label="Bus 1")
    lines!(ax1, ts, sol(ts, idxs=VIndex(:bus2, :busbar₊u_mag)).u; label="Bus 2")
    lines!(ax1, ts, sol(ts, idxs=VIndex(:bus3, :busbar₊u_mag)).u; label="Bus 3")
    lines!(ax1, ts, sol(ts, idxs=VIndex(:bus4, :busbar₊u_mag)).u; label="Bus 4")
    ax2 = Axis(fig[2,1]; title="Short Circuit", limits=((0,0.5), (0.0, 1.2)), ylabel)
    lines!(ax2, ts, sol(ts, idxs=VIndex(:bus1, :busbar₊u_mag)).u; label="Bus 1")
    lines!(ax2, ts, sol(ts, idxs=VIndex(:bus2, :busbar₊u_mag)).u; label="Bus 2")
    lines!(ax2, ts, sol(ts, idxs=VIndex(:bus3, :busbar₊u_mag)).u; label="Bus 3")
    lines!(ax2, ts, sol(ts, idxs=VIndex(:bus4, :busbar₊u_mag)).u; label="Bus 4")
    ax3 = Axis(fig[3,1]; title="EMT Transients after fault clearing", limits=((0.199,0.204), (0.55, 1.65)), xlabel,ylabel)
    lines!(ax3, ts, sol(ts, idxs=VIndex(:bus1, :busbar₊u_mag)).u; label="Bus 1")
    lines!(ax3, ts, sol(ts, idxs=VIndex(:bus2, :busbar₊u_mag)).u; label="Bus 2")
    lines!(ax3, ts, sol(ts, idxs=VIndex(:bus3, :busbar₊u_mag)).u; label="Bus 3")
    lines!(ax3, ts, sol(ts, idxs=VIndex(:bus4, :busbar₊u_mag)).u; label="Bus 4")
    axislegend(ax1; position=:rb)
    fig
end

The initial state calculated by SimplusGT is slightly off, that's why we see some small oscillations in the MATLAB reference in the first 0.05 seconds. Besides that, we nicely replicate the results from SimplusGT, even for EMT transients.

Identification of Critical Eigenmodes

In the time-domain simulation we see some relatively high oscillations of both inverter-based resources during the fault. Let's try to damp them! First, we need to identify the critical eigenmode here. For that we take the power spectrum of the magnitude of both affected buses and look for dominant frequencies.

We use basic NetworkDynamics functionality to sample :busbar₊u_mag for bus 3 and 4 in the first second. Then we perform a basic FFT on those to obtain the power spectrum:

using FFTA
using Statistics
dt = 0.001
ts = 0:dt:1.0
umags = [sol(ts, idxs=VIndex(Symbol(:bus, i), :busbar₊u_mag)).u for i in 3:4]
fs = 1/dt            # sampling frequency [Hz]
N = length(ts)
umag_no_dc = [(umag .- mean(umag)) for umag in umags]
fft_results = fft.(umag_no_dc)
power_ffts = [abs.(fft_result).^2 / N for fft_result in fft_results]
powers = [power_fft[1:N÷2] for power_fft in power_ffts]
freqs_hz = (0:N÷2-1) .* (fs/N)

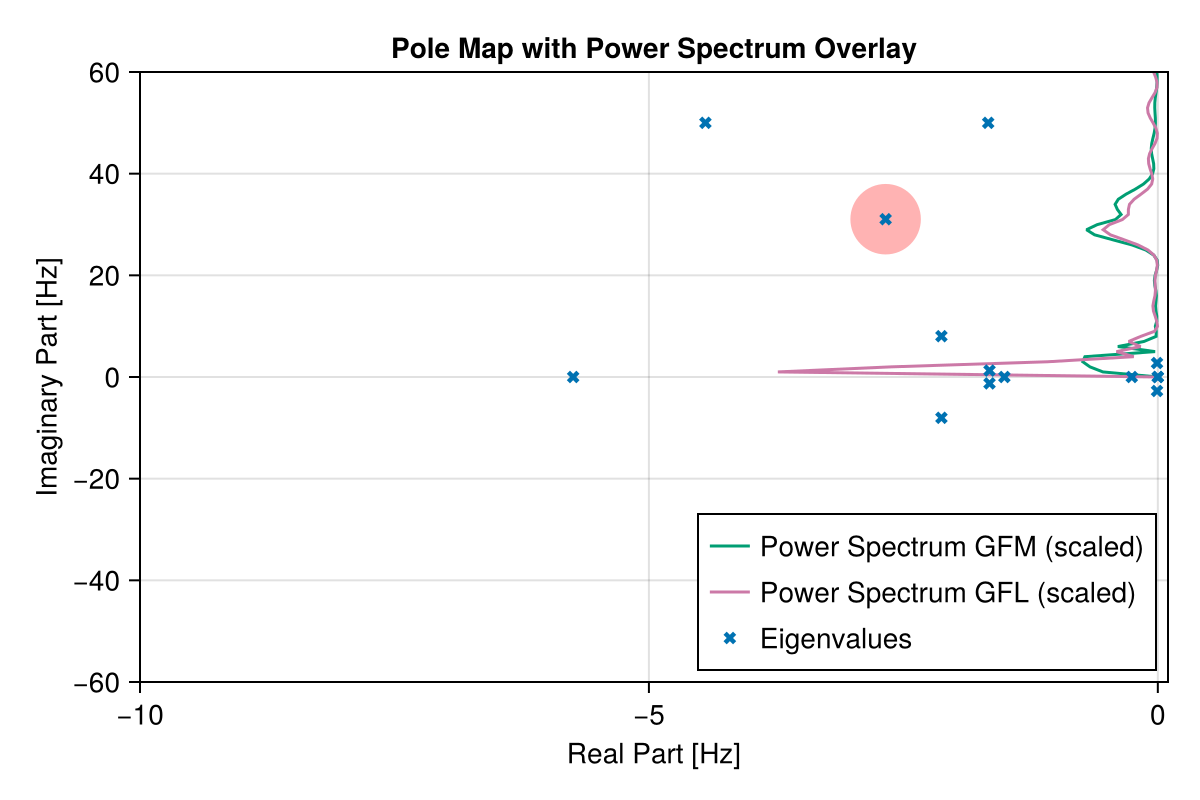

The power spectrum is plotted together with the eigenvalues to visually identify the critical mode.

fig = let
    fig = Figure(size=(600,400))
    ax1 = Axis(fig[1, 1], xlabel="Real Part [Hz]", ylabel="Imaginary Part [Hz]",
               title="Pole Map with Power Spectrum Overlay")
    # ylims!(ax1, -freqs_hz[end], freqs_hz[end])
    xlims!(ax1, -10, 0.1); ylims!(ax1, -60, 60)
    critical_mode = argmin(ev -> abs(imag(ev)-31), eigenvalues)
    scatter!(ax1, real(critical_mode), imag(critical_mode),color=:red, markersize=50, alpha=0.3)
    factor = 20
    lines!(ax1, -factor*powers[1], freqs_hz, label="Power Spectrum GFM (scaled)", color=Cycled(3))
    lines!(ax1, -factor*powers[2], freqs_hz, label="Power Spectrum GFL (scaled)", color=Cycled(4))
    scatter!(ax1, real.(eigenvalues), imag.(eigenvalues), marker=:xcross, label="Eigenvalues")
    axislegend(ax1; position=:rb)
    fig
end

The spectrum shows that the main oscillations occur at very low frequencies. However, we are interested in the bump around 31 Hz, which corresponds to the oscillations between 0.1 and 0.2 seconds in the time-domain plot.

Let's find out which mode index corresponds to that 31 Hz mode:

critical_mode_i = findmin(ev -> abs(imag(ev)-31), eigenvalues)[2]

34

With the critical mode identified, we can look at the participation factors to see which states are most involved in that mode. For that we use show_participation_factors from NetworkDynamics:

show_participation_factors(s0, modes=critical_mode_i, threshold=0.1)

Participation Factors:
  Mode  Real (Hz)  Imag (Hz)  Factor  State
  ─────────────────────────────────────────────────────────────────
  34    -2.674      31.04     0.185   VIndex(5, :droop₊vsrc₊vc₊γ_q)
                              0.1811  VIndex(5, :droop₊vsrc₊vc₊γ_d)
                              0.1094  EIndex(4, :branch₊i_line_r)
                              0.1094  EIndex(6, :branch₊i_line_r)
                              0.1084  EIndex(6, :branch₊i_line_i)
                              0.1084  EIndex(4, :branch₊i_line_i)

We see that the main participation comes from the states droop₊vsrc₊vc₊γ_q and droop₊vsrc₊vc₊γ_d of our droop inverter. If we inspect the model definition, we see that those are related to the d and q components of the internal integrator state of the PI voltage controller.

Next we perform a parameter sensitivity analysis to see how to increase the damping of those modes.

Parameter Sensitivity Analysis

Having identified the modes of interest, the natural next question is: which parameters most influence a given mode?

The eigenvalue_sensitivity function computes the sensitivity of a specific eigenvalue to every parameter in the system using the classical formula:

\[\frac{\partial \lambda_i}{\partial p_k} = \mathbf{w}_i^\top \frac{\partial A_s}{\partial p_k} \mathbf{v}_i\]

where $\mathbf{v}_i$ and $\mathbf{w}_i$ are the right and left eigenvectors. The Jacobian derivative $\partial A_s / \partial p_k$ is computed exactly via nested forward-mode automatic differentiation.

The results are displayed as scaled sensitivities $p_k \cdot \partial\lambda/\partial p_k$, which give the eigenvalue shift per 100% parameter change — making it easy to compare parameters of vastly different magnitudes.

We already know that the critical mode belongs to the droop inverter. Therefore, we'll focus our analysis on the droop inverter parameters. eigenvalue_sensitivity allows us to pass a list of parameters for which we want to obtain the sensitivities. We use vpidxs to generate a list of all the parameter symbols of our droop inverter.

psyms = vpidxs(nw, :gfm_bus)

25-element Vector{NetworkDynamics.SymbolicIndex}:
 VIndex(5, :droop₊droop₊Kp)
 VIndex(5, :droop₊droop₊ω0)
 VIndex(5, :droop₊droop₊Kq)
 VIndex(5, :droop₊droop₊τ_q)
 VIndex(5, :droop₊droop₊Vset)
 VIndex(5, :droop₊droop₊τ_p)
 VIndex(5, :droop₊droop₊Qset)
 VIndex(5, :droop₊droop₊Pset)
 VIndex(5, :droop₊vsrc₊CC1_F)
 VIndex(5, :droop₊vsrc₊CC1_KI)
 ⋮
 VIndex(5, :droop₊vsrc₊Lg)
 VIndex(5, :droop₊vsrc₊VC_KP)
 VIndex(5, :droop₊vsrc₊VC_F)
 VIndex(5, :droop₊vsrc₊ω0)
 VIndex(5, :droop₊vsrc₊Rg)
 VIndex(5, :droop₊vsrc₊R_virt)
 VIndex(5, :droop₊vsrc₊VC_Fcoupl)
 VIndex(5, :droop₊vsrc₊VC_KI)
 VIndex(5, :droop₊vsrc₊filter₊connected)

We can use show_eigenvalue_sensitivity to get a nice table of the most sensitive parameters for our critical mode. We sort by real magnitude, since we are mostly interested in improving the damping of the mode.

show_eigenvalue_sensitivity(s0, critical_mode_i; params=psyms, threshold=0.01, sortby=:realmag)

Eigenvalue Sensitivity for mode 34: λ = -2.674 ± 31.04j Hz
  Parameter                                Value     Real (Hz)  Imag (Hz)  |p·∂λ/∂p| (Hz)  ∠ (deg)
  ────────────────────────────────────────────────────────────────────────────────────────────────
  VIndex(5, :droop₊vsrc₊Rg)                 0.002    -0.3668     0.01983   0.3674           176.9
  VIndex(5, :droop₊vsrc₊filter₊connected)   1        -0.2162     23.42     23.42            90.53
  VIndex(5, :droop₊vsrc₊VC_KI)              2827     -0.2099     13.36     13.36            90.9
  VIndex(5, :droop₊vsrc₊Lg)                 0.01      0.1359     0.6909    0.7041           78.87
  VIndex(5, :droop₊vsrc₊VC_KP)              0.12     -0.1104    -0.01123   0.1109          -174.2
  VIndex(5, :droop₊droop₊τ_p)               0.03183  -0.1067     1.178     1.183            95.18
  VIndex(5, :droop₊vsrc₊X_virt)             0.01      0.1033     1.872     1.875            86.84
  VIndex(5, :droop₊droop₊Kp)                15.71    -0.0831    -1.179     1.182           -94.03
  VIndex(5, :droop₊vsrc₊CC1_KP)             0.6      -0.07488    0.004439  0.07501          176.6
  VIndex(5, :droop₊vsrc₊CC1_KI)             565.5     0.05721    0.3869    0.3911           81.59
  VIndex(5, :droop₊vsrc₊Rf)                 0.01      0.04461   -0.004583  0.04484         -5.866
  VIndex(5, :droop₊vsrc₊ω0)                 314.2    -0.04091    1.015     1.016            92.31
  VIndex(5, :droop₊vsrc₊Lf)                 0.05     -0.02063   -0.08342   0.08593         -103.9

The most impactful parameters are:

• The grid-side filter resistance Rg and inductance Lg (can't be "tuned" since they are physical parameters)
• The topology parameter connected which is not tunable
• The proportional and integral gains of the voltage controller VC_KP and VC_KI

Let's check our eigenvalues after initializing the system again with those parameters increased by a factor of 3:

default_overrides = Dict(
    VIndex(5, :droop₊vsrc₊VC_KP) => 3.0*s0.v[:gfm_bus, :droop₊vsrc₊VC_KP],
    VIndex(5, :droop₊vsrc₊VC_KI) => 3.0*s0.v[:gfm_bus, :droop₊vsrc₊VC_KI]
)
s0_tuned = initialize_from_pf(nw; pfs, default_overrides, tol=1e-7, nwtol=1e-7)

Initialize VIndex(1) -> 6.114655223365241e-15
Initialize VIndex(2) -> 4.2315738567606557e-10
Initialize VIndex(3) -> 2.2640520640733482e-14
Initialize VIndex(4) -> 5.120412652869021e-10
Initialize VIndex(5) -> 8.944416269384488e-13
Initialize VIndex(6) -> 1.17030094251339e-8
Initialize VIndex(7) -> 1.651700755064424e-12
Initialize VIndex(8) -> 1.41779809440649e-8
Initialize EIndex(1) -> 0.0
Initialize EIndex(2) -> 1.5757357078607168e-16
Initialize EIndex(3) -> 0.0
Initialize EIndex(4) -> 6.240178189820104e-15
Initialize EIndex(5) -> 0.0
Initialize EIndex(6) -> 7.198844511193468e-15
Initialize EIndex(7) -> 4.019578521369299e-14
Initialize EIndex(8) -> 0.0
Initialized network with residual 4.621184842008005e-8!

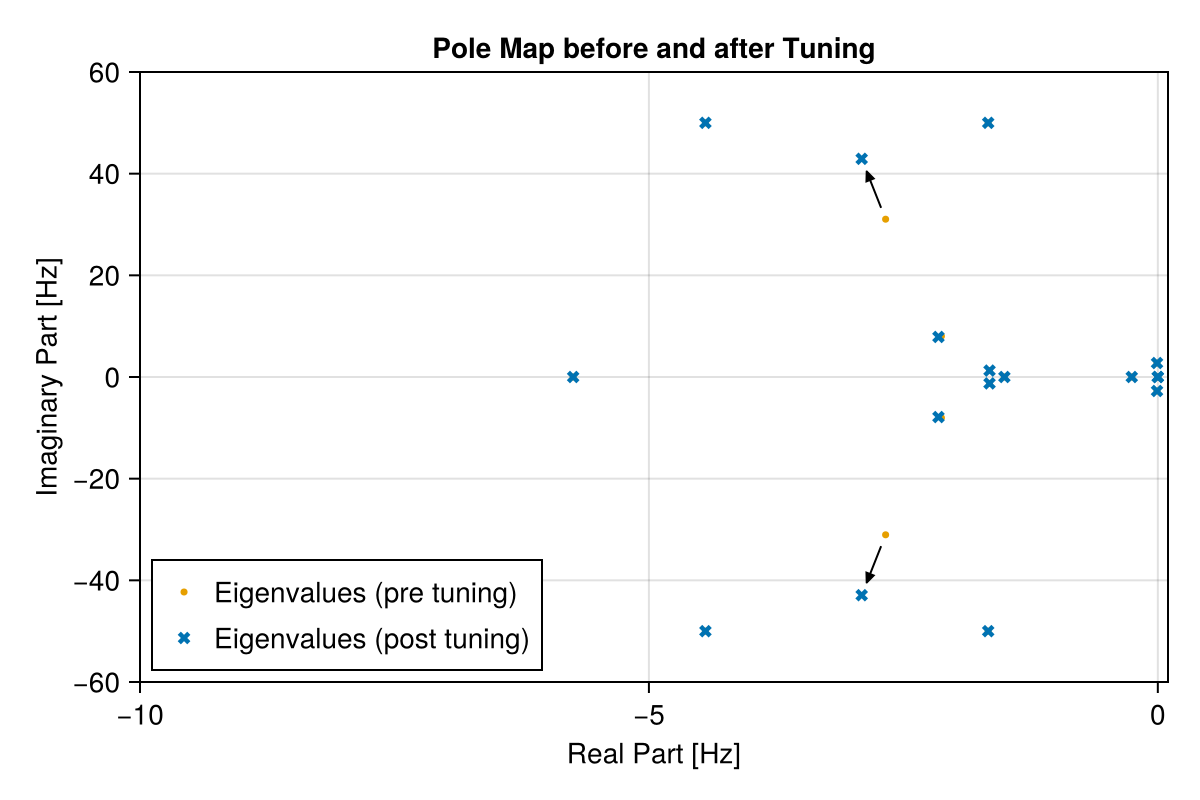

We can plot the new eigenvalues together with the old ones to see the effect of our tuning:

fig = let
    fig = Figure(size=(600,400))
    ax1 = Axis(fig[1, 1], xlabel="Real Part [Hz]", ylabel="Imaginary Part [Hz]",
               title="Pole Map before and after Tuning")
    # ylims!(ax1, -freqs_hz[end], freqs_hz[end])
    xlims!(ax1, -10, 0.1); ylims!(ax1, -60, 60)
    old_ev = jacobian_eigenvals(s0) ./ (2 * pi)
    new_ev = jacobian_eigenvals(s0_tuned) ./ (2 * pi)
    scatter!(ax1, real.(old_ev), imag.(old_ev), markersize=5, label="Eigenvalues (pre tuning)", color=Cycled(2))
    scatter!(ax1, real.(new_ev), imag.(new_ev), marker=:xcross, label="Eigenvalues (post tuning)")

    # add arrow plot to show movement of critical modes
    path = (t) -> old_ev[critical_mode_i] + t * (new_ev[critical_mode_i] - old_ev[critical_mode_i])
    arrows2d!(ax1, [(real(path(0.2)),  imag(path(0.2)))], [(real(path(0.8)),  imag(path(0.8)))]; argmode=:endpoint, shaftwidth=1, tiplength=5, tipwidth=5)
    arrows2d!(ax1, [(real(path(0.2)), -imag(path(0.2)))], [(real(path(0.8)), -imag(path(0.8)))]; argmode=:endpoint, shaftwidth=1, tiplength=5, tipwidth=5)
    axislegend(ax1; position=:lb)
    fig
end

Lastly, we run the time-domain simulation again with the tuned parameters to see the effect on the system response.

prob_tuned = ODEProblem(nw, s0_tuned, (0,30); add_comp_cb=VIndex(:bus1)=>short)
sol_tuned = solve(prob_tuned, Rodas5P())

Short Circuit at Bus 1 at t=0.1s
Clearing Short Circuit at Bus 1 at t=0.2s

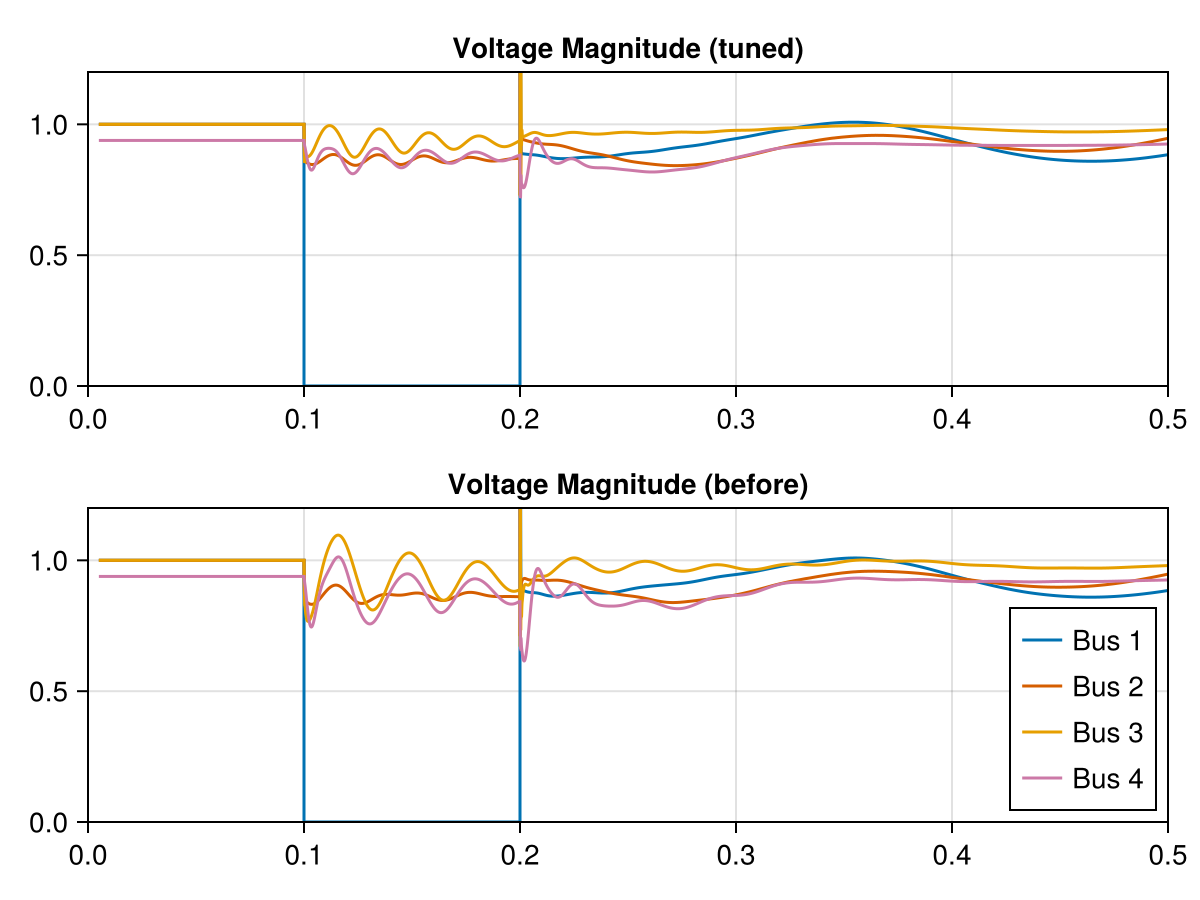

When we plot the tuned and untuned solutions together we can verify that the oscillations have been damped by the tuning.

fig = with_theme(Theme(palette = (; color = Makie.wong_colors()[[1, 6, 2, 4]]))) do
    fig = Figure()
    ax = Axis(fig[1,1], title="Voltage Magnitude (tuned)", limits=((0,0.5), (0.0, 1.2)))
    ts = filter(t -> t>0, refine_timeseries(sol.t))
    for i in 1:4
        lines!(ax, ts, sol_tuned(ts, idxs=VIndex(Symbol(:bus, i), :busbar₊u_mag)).u; label="Bus $i", color=Cycled(i))
    end
    ax2 = Axis(fig[2,1], title="Voltage Magnitude (before)", limits=((0,0.5), (0.0, 1.2)))
    for i in 1:4
        lines!(ax2, ts, sol(ts, idxs=VIndex(Symbol(:bus, i), :busbar₊u_mag)).u; label="Bus $i", color=Cycled(i))
    end
    axislegend(ax2; position=:rb)
    fig
end

This page was generated using Literate.jl.
