Zero-Impedance Circuit Breaker

This tutorial can be downloaded as a normal Julia script here.

This example demonstrates how to model a zero-impedance circuit breaker in PowerDynamics.jl. It is primarily a pedagogical example, the system presented in this tutorial itself is not meant as a realistic physical simulation scenario, but rather as a teaching tool for understanding how to handle such components in PowerDynamics.

The example features a simple two-generator, two-load system with a breaker connecting two junction buses. We'll open the breaker at a preset time and then automatically reclose it when the voltage angles across the breaker are synchronized.

Imports

We use the standard PowerDynamics.jl stack along with ModelingToolkit for component definitions and OrdinaryDiffEq for solving the resulting differential-algebraic equations.

using PowerDynamics
using PowerDynamics.Library
using ModelingToolkit
using ModelingToolkit: t_nounits as t, D_nounits as Dt
using OrdinaryDiffEqRosenbrock
using OrdinaryDiffEqNonlinearSolve
using CairoMakie

System Topology

The system consists of two generators (G1, G2) supplying two loads (L1, L2) through junction buses (J1, J2) connected by a breaker:

G1 (~)─╂──╮J1 ╭───╂─▷ L1
         ╺┷━┯━┷╸
            │ Breaker
         ╺┯━┷━┯╸
G2 (~)─╂──╯J2 ╰───╂─▷ L2

The breaker can be opened and closed, allowing us to study transient behavior during switching operations.

Bus Definitions

We define two swing generators with different power specifications:

• G1: Slack bus (reference) with V=1.0 pu
• G2: PV bus with V=0.95 pu and P=1.0 pu

The system also has two constant admittance loads and two junction buses that serve as connection points for the breaker.

@named swing = Swing()
G1 = compile_bus(MTKBus(swing); name=:G1, vidx=1, pf=pfSlack(V=1.), swing₊M=0.1, swing₊D=0.1)
G2 = compile_bus(MTKBus(swing); name=:G2, vidx=2, pf=pfPV(V=0.95, P=1.0), swing₊D=0.1)

# Constant admittance loads
@named load = ConstantYLoad()
L1 = compile_bus(MTKBus(load); name=:L1, vidx=3, pf=pfPQ(P=-1.0, Q=-0.1))
L2 = compile_bus(MTKBus(load); name=:L2, vidx=4, pf=pfPQ(P=-1.0, Q=-0.1))

# Junction buses (no dynamics, just connection points)
J1 = compile_bus(MTKBus(); name=:J1, vidx=5)
J2 = compile_bus(MTKBus(); name=:J2, vidx=6)

Line Model

We use a simple π-line model with low reactance and shunt capacitance. The lines connect each generator to its respective junction bus, and each junction bus to its load.

@named pibranch = PiLine(;R=0.01, X=0.005, B_src=0.08, B_dst=0.08)
line_template = compile_line(MTKLine(pibranch))
lines = [
    EdgeModel(line_template; src=:G1, dst=:J1)
    EdgeModel(line_template; src=:J1, dst=:L1)
    EdgeModel(line_template; src=:G2, dst=:J2)
    EdgeModel(line_template; src=:J2, dst=:L2)
]

Breaker Component Definition

The breaker is a switchable component that can connect or disconnect two buses. When closed, it enforces zero voltage difference across its terminals (zero impedance). When open, it allows no current to flow.

The breaker has a parameter closed that controls its state:

• closed = 1: Breaker is closed (zero impedance, voltages equal)
• closed = 0: Breaker is open (zero current)

We use ifelse to switch between these two operating modes. When closed, the equations enforce u_dst = u_src with the current as an implicit output. When open, the equations enforce i = 0.

@mtkmodel Breaker begin
    @parameters begin
        closed=1, [description="Breaker closed (1) or open (0)"]
    end
    @components begin
        src = Terminal()
        dst = Terminal()
    end
    @variables begin
        i_r(t), [guess=0, description="Current real part through breaker"]
        i_i(t), [guess=0, description="Current imaginary part through breaker"]
    end
    @equations begin
        # When closed: enforce u_dst = u_src (with current as implicit output)
        # When open: enforce i = 0
        0 ~ ifelse(closed == 1, dst.u_r - src.u_r + implicit_output(i_r), i_r)
        0 ~ ifelse(closed == 1, dst.u_i - src.u_i + implicit_output(i_i), i_i)
        # Current flow equations (standard for all edge components)
        dst.i_r ~ i_r
        dst.i_i ~ i_i
        src.i_r ~ -dst.i_r
        src.i_i ~ -dst.i_i
    end
end

breaker_mod = Breaker(name=:breaker)
breaker = compile_line(MTKLine(breaker_mod), src=:J1, dst=:J2, name=:breaker)

EdgeModel :breaker PureStateMap() @ Edge J1=>J2
 ├─ 2/2 inputs:  src=[src₊u_r, src₊u_i] dst=[dst₊u_r, dst₊u_i]
 ├─   2 states:  [breaker₊i_i≈0, breaker₊i_r≈0]
 |      with diagonal mass matrix [0, 0]
 ├─ 2/2 outputs: src=[src₊i_r, src₊i_i] dst=[dst₊i_r, dst₊i_i]
 └─   1 param:   [breaker₊closed=1]

Network Assembly

We assemble the full network with all buses, lines, and the breaker.

nw = Network([G1, G2, L1, L2, J1, J2], [lines... , breaker]; warn_order=false)

Network with 14 states and 51 parameters
 ├─ 6 vertices (3 unique types)
 └─ 5 edges (2 unique types)
Edge-Aggregation using SequentialAggregator(+)

Power Flow Initialization

We initialize the system from a power flow solution. The breaker starts in the closed state, so the two sides of the system are initially connected and synchronized.

s0 = initialize_from_pf!(nw)

Initialize VIndex(1) -> 0.0
Initialize VIndex(2) -> 0.0
Initialize VIndex(3) -> 9.510335694037595e-16
Initialize VIndex(4) -> 9.510335694037595e-16
Initialize VIndex(5) -> 4.12167961557554e-15
Initialize VIndex(6) -> 9.377442109486237e-15
Initialize EIndex(1) -> 0.0
Initialize EIndex(2) -> 0.0
Initialize EIndex(3) -> 0.0
Initialize EIndex(4) -> 1.2585248453105973e-15
Initialize EIndex(5) -> 0.0
Initialized network with residual 1.0727166417917702e-14!

Breaker Control Callbacks

We define two callbacks to control the breaker:

1. Opening callback: A preset-time callback that opens the breaker at t=0.1s
2. Closing callback: A continuous callback that automatically recloses the breaker when the voltage angles across the breaker are synchronized (angle difference crosses zero)

The toggle_breaker affect function switches the breaker state by flipping the closed parameter.

Once the breaker is opened, we expect power imbalances and thus frequency deviations in both subsystem 1 and subsystem 2. At some point, the voltage angles on both sides will align again, triggering the reclosing callback. This is obviously not a realistic breaker control strategy, but it serves to demonstrate both opening and closing of the breaker in a single simulation.

toggle_breaker = ComponentAffect([],[:breaker₊closed]) do u, p, ctx
    current = p[:breaker₊closed]
    next = current == 1 ? 0 : 1
    println("Toggling breaker state from ", Int(current), " to ", Int(next), " at t=", ctx.t)
    p[:breaker₊closed] = next
end

# Open the breaker at t=0.1s
open_breaker = PresetTimeComponentCallback(0.1, toggle_breaker)

# Close the breaker when voltage angles are synchronized
close_cond = ComponentCondition([:src₊u_r, :src₊u_i, :dst₊u_r, :dst₊u_i], [:breaker₊closed]) do u, p, ctx
    # Don't trigger if already/still closed
    p[:breaker₊closed] == 1 && return Inf

    # Calculate voltage angles on both sides
    src_arg = atan(u[:src₊u_i], u[:src₊u_r])
    dst_arg = atan(u[:dst₊u_i], u[:dst₊u_r])

    # Return angle difference (callback triggers when this crosses zero)
    src_arg - dst_arg
end
close_breaker = ContinuousComponentCallback(close_cond, toggle_breaker)

Simulation

We create an ODE problem and solve it using the Rodas5P solver (a stiff DAE solver). The callbacks are attached to the breaker component using the add_comp_cb keyword argument.

prob = ODEProblem(nw, s0, (0,2); add_comp_cb=[EIndex(:breaker) => (open_breaker, close_breaker)])
sol = solve(prob, Rodas5P())

Toggling breaker state from 1 to 0 at t=0.1
Toggling breaker state from 0 to 1 at t=0.40417553004768036

Results Visualization

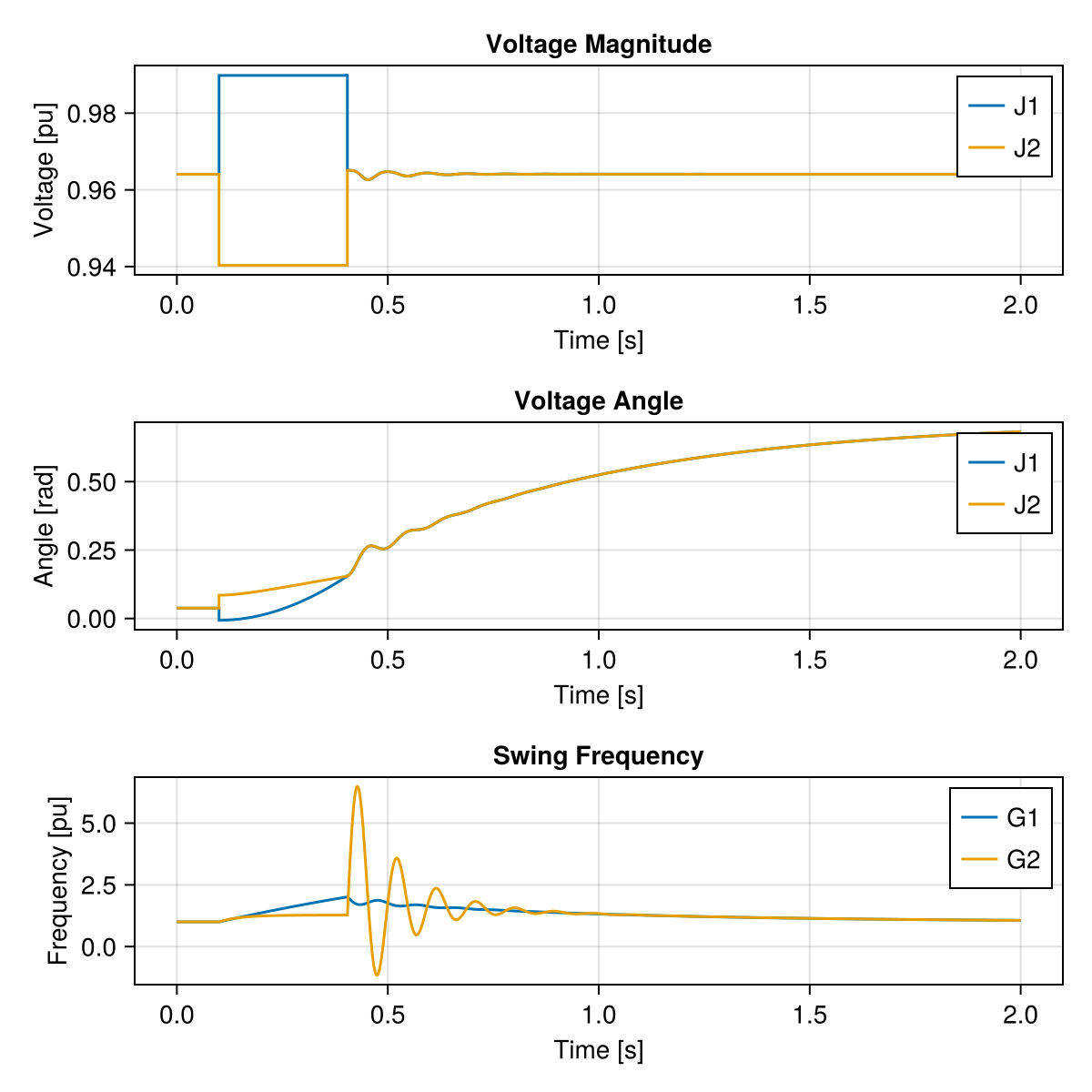

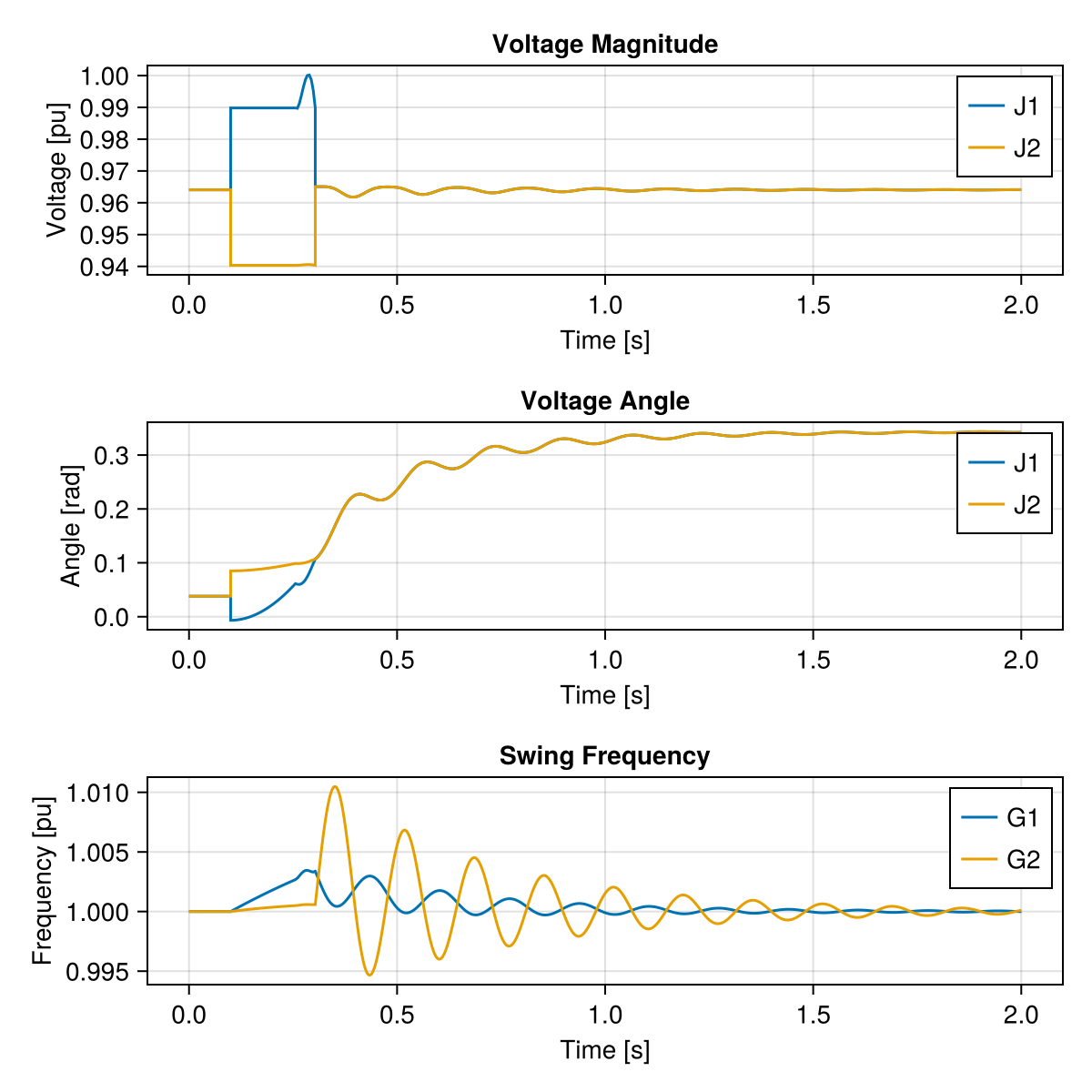

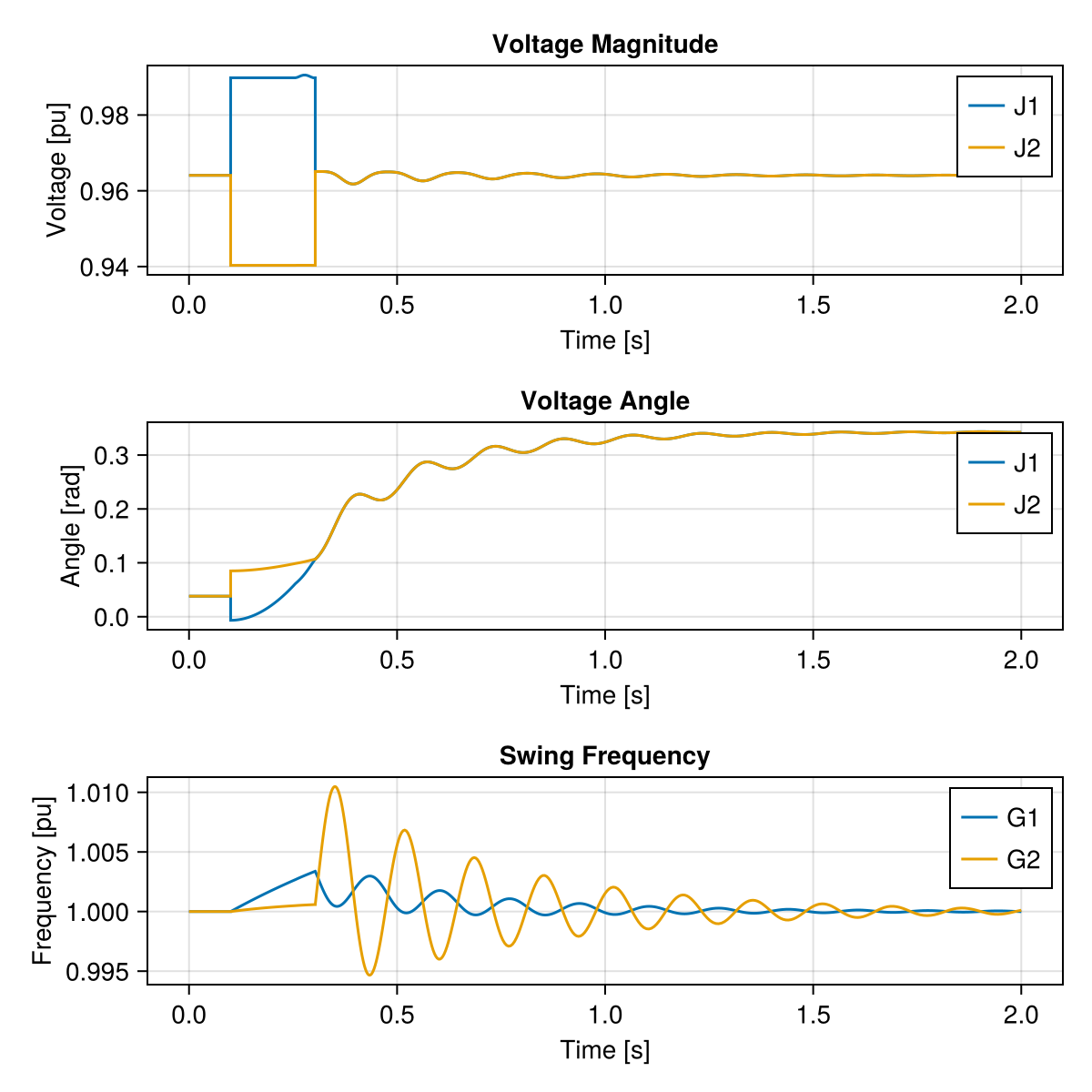

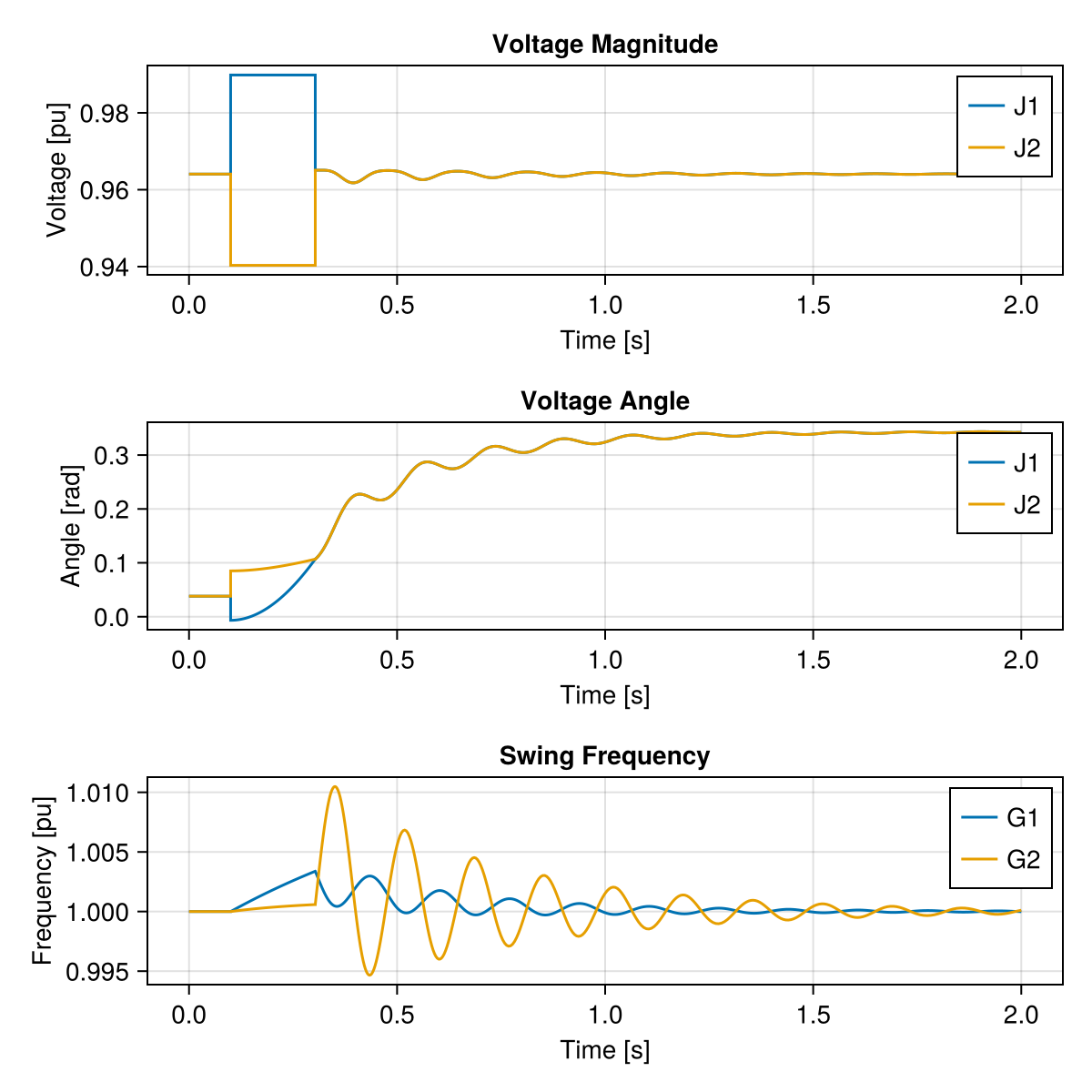

We see that the voltages of both junction buses diverge after the breaker is opened at t=0.1s. When the breaker recloses (when the voltage angles synchronize), the voltages realign and stay aligned.

let
    fig = Figure(size=(600,600))
    ax = Axis(fig[1, 1]; title="Voltage Magnitude", xlabel="Time [s]", ylabel="Voltage [pu]")
    ts = refine_timeseries(sol.t)
    lines!(ax, ts, sol(ts; idxs=VIndex(:J1, :busbar₊u_mag)).u, label="J1")
    lines!(ax, ts, sol(ts; idxs=VIndex(:J2, :busbar₊u_mag)).u, label="J2")
    axislegend(ax)
    ax = Axis(fig[2, 1]; title="Voltage Angle", xlabel="Time [s]", ylabel="Angle [rad]")
    lines!(ax, ts, sol(ts; idxs=VIndex(:J1, :busbar₊u_arg)).u, label="J1")
    lines!(ax, ts, sol(ts; idxs=VIndex(:J2, :busbar₊u_arg)).u, label="J2")
    axislegend(ax)
    ax = Axis(fig[3, 1]; title="Swing Frequency", xlabel="Time [s]", ylabel="Frequency [pu]")
    lines!(ax, ts, sol(ts; idxs=VIndex(:G1, :swing₊ω)).u, label="G1")
    lines!(ax, ts, sol(ts; idxs=VIndex(:G2, :swing₊ω)).u, label="G2")
    axislegend(ax)
    fig
end
