IEEE 9-Bus Example

This tutorial can be downloaded as a normal Julia script here.

In this example, we're going to model the IEEE 9 bus system.

The parameters are mainly adopted from the RTDS data.

using PowerDynamics
using PowerDynamics.Library
using ModelingToolkit
using NetworkDynamics
using Graphs
using OrdinaryDiffEqRosenbrock
using OrdinaryDiffEqNonlinearSolve
using CairoMakie

Generator Buses

The 3 generator buses are modeled using a SauerPai 6th order machine model with variable field voltage and mechanical torque input. The field voltage is provided by an AVRTypeI, the torque is provided by a TGOV1 model.

function GeneratorBus(; machine_p=(;), avr_p=(;), gov_p=(;))
    @named machine = SauerPaiMachine(;
        vf_input=true,
        τ_m_input=true,
        S_b=100,
        V_b=1,
        ω_b=2π*60,
        R_s=0.000125,
        T″_d0=0.01,
        T″_q0=0.01,
        machine_p... # unpack machine parameters
    )
    @named avr = AVRTypeI(; vr_min=-5, vr_max=5,
        Ka=20, Ta=0.2,
        Kf=0.063, Tf=0.35,
        Ke=1, Te=0.314,
        E1=3.3, Se1=0.6602, E2=4.5, Se2=4.2662,
        tmeas_lag=false,
        avr_p... # unpack AVR parameters
    )
    @named gov = TGOV1(; R=0.05, T1=0.05, T2=2.1, T3=7.0, DT=0, V_max=5, V_min=-5,
        gov_p... # unpack governor parameters
    )
    # generate the "injector" as combination of multiple components
    injector = CompositeInjector([machine, avr, gov]; name=:generator)

    # generate the MTKBus (i.e. the MTK model containg the busbar and the injector)
    mtkbus = MTKBus(injector)
end

Load Buses

The dynamic loads are modeled as static Y-loads. Those have 2 parameters: G and B which form the complex admittance

\[Y = G + j\,B\]

For now, those parameters will be left free. We'll initialize them later on from the powerflow results.

function ConstantYLoadBus()
    @named load = ConstantYLoad()
    MTKBus(load; name=:loadbus)
end

Generate Dynamical models

The parameters of the machines are obtained from the data table from the RTDS datasheet.

gen1p = (;X_ls=0.01460, X_d=0.1460, X′_d=0.0608, X″_d=0.06, X_q=0.1000, X′_q=0.0969, X″_q=0.06, T′_d0=8.96, T′_q0=0.310, H=23.64)
gen2p = (;X_ls=0.08958, X_d=0.8958, X′_d=0.1198, X″_d=0.11, X_q=0.8645, X′_q=0.1969, X″_q=0.11, T′_d0=6.00, T′_q0=0.535, H= 6.40)
gen3p = (;X_ls=0.13125, X_d=1.3125, X′_d=0.1813, X″_d=0.18, X_q=1.2578, X′_q=0.2500, X″_q=0.18, T′_d0=5.89, T′_q0=0.600, H= 3.01)

We instantiate all models as modeling toolkit models.

mtkbus1 = GeneratorBus(; machine_p=gen1p)
mtkbus2 = GeneratorBus(; machine_p=gen2p)
mtkbus3 = GeneratorBus(; machine_p=gen3p)
mtkbus4 = MTKBus() # <- bus with no injectors, essentially
mtkbus5 = ConstantYLoadBus()
mtkbus6 = ConstantYLoadBus()
mtkbus7 = MTKBus()
mtkbus8 = ConstantYLoadBus()
mtkbus9 = MTKBus()

After this, we can build the NetworkDynamics components using the Bus-constructor.

The Bus constructor is essentially a thin wrapper around the VertexModel constructor which, per default, adds some metadata. For example the vidx property which later on allows for "graph free" network dynamics instantiation.

We use the pf keyword to specify the models which should be used in the powerflow calculation. Here, generator 1 is modeled as a slack bus while the other two generators are modeled as PV buses. The loads are modeled as PQ buses.

@named bus1 = compile_bus(mtkbus1; vidx=1, pf=pfSlack(V=1.04))
@named bus2 = compile_bus(mtkbus2; vidx=2, pf=pfPV(V=1.025, P=1.63))
@named bus3 = compile_bus(mtkbus3; vidx=3, pf=pfPV(V=1.025, P=0.85))
@named bus4 = compile_bus(mtkbus4; vidx=4)
@named bus5 = compile_bus(mtkbus5; vidx=5, pf=pfPQ(P=-1.25, Q=-0.5))
@named bus6 = compile_bus(mtkbus6; vidx=6, pf=pfPQ(P=-0.9, Q=-0.3))
@named bus7 = compile_bus(mtkbus7; vidx=7)
@named bus8 = compile_bus(mtkbus8; vidx=8, pf=pfPQ(P=-1.0, Q=-0.35))
@named bus9 = compile_bus(mtkbus9; vidx=9)

Branches

Branches and Transformers are built from the same PILine model with optional transformer on both ends. However, the data is provided in a way that the actual transformer values are 1.0. Apparently, the transforming action has been absorbed into the line parameters according to the base voltage on both ends.

For the lines we again make use of the src and dst metadata of the EdgeModel objects for automatic graph construction.

function piline(; R, X, B)
    @named pibranch = PiLine(;R, X, B_src=B/2, B_dst=B/2, G_src=0, G_dst=0)
    MTKLine(pibranch)
end
function transformer(; R, X)
    @named transformer = PiLine(;R, X, B_src=0, B_dst=0, G_src=0, G_dst=0)
    MTKLine(transformer)
end

@named l45 = compile_line(piline(; R=0.0100, X=0.0850, B=0.1760), src=4, dst=5)
@named l46 = compile_line(piline(; R=0.0170, X=0.0920, B=0.1580), src=4, dst=6)
@named l57 = compile_line(piline(; R=0.0320, X=0.1610, B=0.3060), src=5, dst=7)
@named l69 = compile_line(piline(; R=0.0390, X=0.1700, B=0.3580), src=6, dst=9)
@named l78 = compile_line(piline(; R=0.0085, X=0.0720, B=0.1490), src=7, dst=8)
@named l89 = compile_line(piline(; R=0.0119, X=0.1008, B=0.2090), src=8, dst=9)
@named t14 = compile_line(transformer(; R=0, X=0.0576), src=1, dst=4)
@named t27 = compile_line(transformer(; R=0, X=0.0625), src=2, dst=7)
@named t39 = compile_line(transformer(; R=0, X=0.0586), src=3, dst=9)

Build Network

Finally, we can build the network by providing the vertices and edges.

vertexfs = [bus1, bus2, bus3, bus4, bus5, bus6, bus7, bus8, bus9];
edgefs = [l45, l46, l57, l69, l78, l89, t14, t27, t39];
nw = Network(vertexfs, edgefs; warn_order=false)
Network with 54 states and 216 parameters
 ├─ 9 vertices (3 unique types)
 └─ 9 edges (2 unique types)
Edge-Aggregation using SequentialAggregator(+)

System Initialization

To initialize the system for dynamic simulation, we use initialize_from_pf! which performs a unified powerflow solving and component initialization process.

Internally, this function:

  1. Builds an equivalent static powerflow network from the dynamic models
  2. Solves the static powerflow equations using the specified powerflow models (pfSlack, pfPV, pfPQ)
  3. Uses the powerflow solution to initialize all dynamic component states and parameters

This ensures that the dynamic model starts from a steady-state condition that matches the powerflow solution. Specifically, it determines:

  • Bus voltages and currents from the powerflow solution
  • Unknown G and B parameters for load buses
  • Internal machine states (flux linkages, rotor angles, etc.)
  • Controller states and references for AVRs and governors

For example, we use constant Y-loads for the dynamic load models. Those have a fixed admittance

\[Y = G+j\,B\]

which is not known a priori. However, from the powerflow (where the loads are modeled as PQ loads) we know both voltage and current at steady state. With this knowledge, we can determine the missing parameters G and B such that the dynamic load model matches the static load model in the initial state.

u0 = initialize_from_pf(nw);
┌ Warning: The `alias_u0` keyword argument is deprecated. Please use a NonlinearAliasSpecifier, e.g. `alias = NonlinearAliasSpecifier(alias_u0 = true)`.
└ @ NonlinearSolveBase ~/.julia/packages/NonlinearSolveBase/2E600/src/solve.jl:57
Initializing vertex 1... => residual 1.8930559493673422e-14
Initializing vertex 2... => residual 1.8540257924989902e-14
Initializing vertex 3... => residual 1.0643358756527945e-13
Initializing vertex 4... => residual 1.9298110615968595e-15
Initializing vertex 5... => residual 2.8307098403882007e-14
Initializing vertex 6... => residual 1.1102230246251565e-16
Initializing vertex 7... => residual 1.8457457784393227e-15
Initializing vertex 8... => residual 6.604641230743592e-14
Initializing vertex 9... => residual 8.345155887641791e-16
Initializing edge 1... => residual 0.0
Initializing edge 2... => residual 0.0
Initializing edge 3... => residual 0.0
Initializing edge 4... => residual 0.0
Initializing edge 5... => residual 0.0
Initializing edge 6... => residual 0.0
Initializing edge 7... => residual 0.0
Initializing edge 8... => residual 0.0
Initializing edge 9... => residual 0.0
Initialized network with residual 1.3115439717313017e-13!

To verify what we've just said, we can check the initial values of the active and reactive power of our constant Y load model at bus 5 to see if it matches the setpoints of our powerflow model:

u0[VIndex(5, :load₊P)] ≈ -1.25 && u0[VIndex(5, :load₊Q)] ≈ -0.5
true

Disturbance

To see some dynamics, we need to introduce some disturbance. For that we use a PresetTimeComponentCallback to deactivate a line at a certain time.

deactivate_line = ComponentAffect([], [:pibranch₊active]) do u, p, ctx
    @info "Deactivate line $(ctx.src)=>$(ctx.dst) at t=$(ctx.t)"
    p[:pibranch₊active] = 0
end
cb = PresetTimeComponentCallback([1.0], deactivate_line)
set_callback!(l46, cb)
l46 # printout shows that the callback is set
EdgeModel :l46 PureFeedForward() @ Edge 4=>6
 ├─ 2/2 inputs:   src=[src₊u_r, src₊u_i] dst=[dst₊u_r, dst₊u_i]
 ├─   0 states:   []
 ├─ 2/2 outputs:  src=[src₊i_r, src₊i_i] dst=[dst₊i_r, dst₊i_i]
 ├─   9 params:   [pibranch₊R=0.017, pibranch₊X=0.092, pibranch₊G_src=0, pibranch₊B_src=0.079, pibranch₊G_dst=0, pibranch₊B_dst=0.079, pibranch₊r_src=1, pibranch₊r_dst=1, pibranch₊active=1]
 └─   1 callback: (:pibranch₊active) affected at t=[1.0]

Dynamic Simulation

With the system properly initialized, we can now set up and run the dynamic simulation. We create an ODE problem using the initialized state and simulate the system response to the line outage disturbance.

prob = ODEProblem(nw,  u0, (0,15))
sol = solve(prob, Rodas5P())
[ Info: Deactivate line 4=>6 at t=1.0

Plotting the Solution

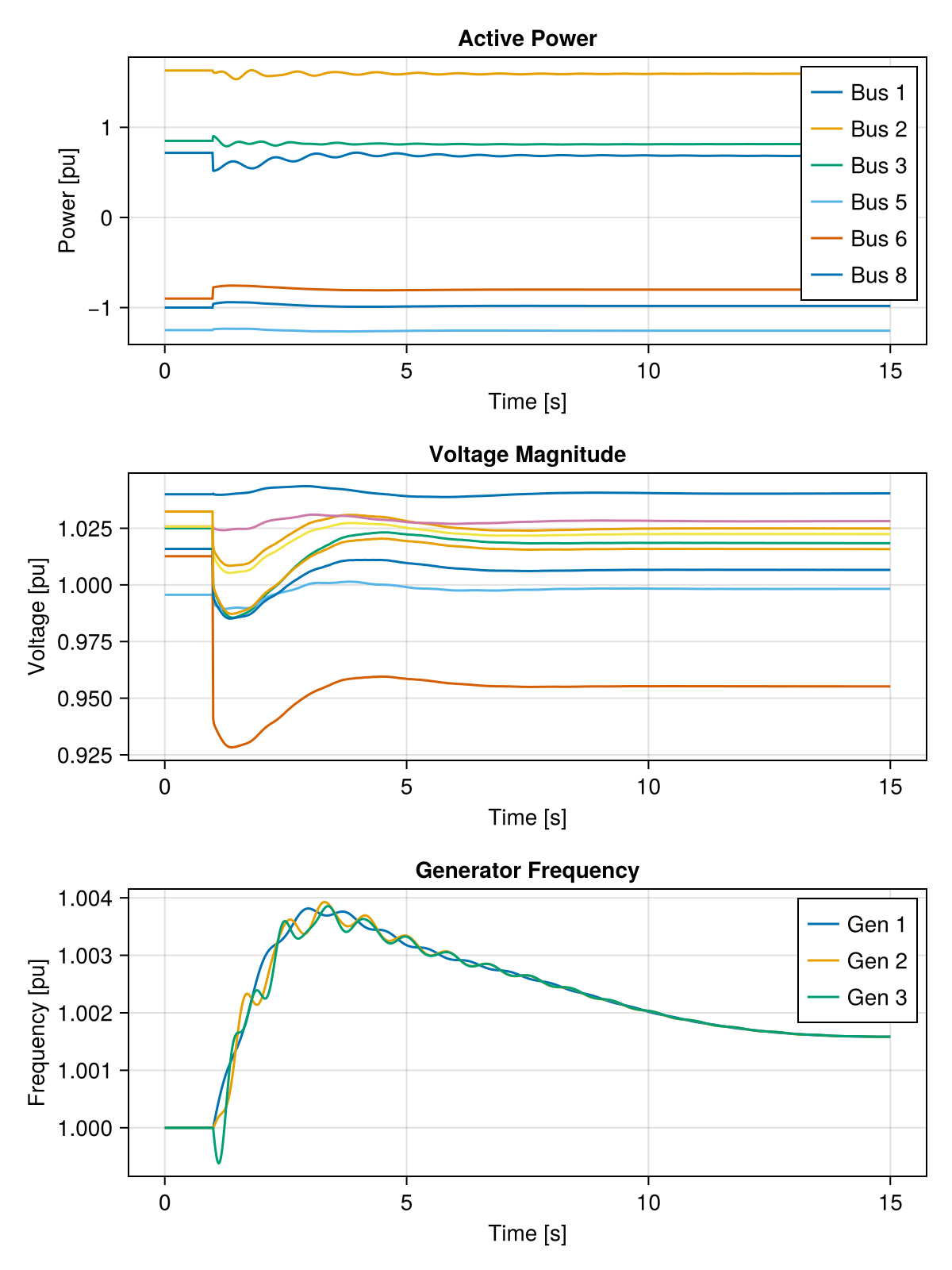

Finally, we visualize the simulation results showing the system response to the line outage at t=1.0 seconds. The plots show active power, voltage magnitudes, and generator frequencies across the simulation time.

fig = Figure(size=(600,800));

# Active power at selected buses
ax = Axis(fig[1, 1]; title="Active Power", xlabel="Time [s]", ylabel="Power [pu]")
for i in [1,2,3,5,6,8]
    lines!(ax, sol; idxs=VIndex(i,:busbar₊P), label="Bus $i", color=Cycled(i))
end
axislegend(ax)

# Voltage magnitude at all buses
ax = Axis(fig[2, 1]; title="Voltage Magnitude", xlabel="Time [s]", ylabel="Voltage [pu]")
for i in 1:9
    lines!(ax, sol; idxs=VIndex(i,:busbar₊u_mag), label="Bus $i", color=Cycled(i))
end

# Generator frequencies
ax = Axis(fig[3, 1]; title="Generator Frequency", xlabel="Time [s]", ylabel="Frequency [pu]")
for i in 1:3
    lines!(ax, sol; idxs=VIndex(i,:generator₊machine₊ω), label="Gen $i", color=Cycled(i))
end
axislegend(ax)

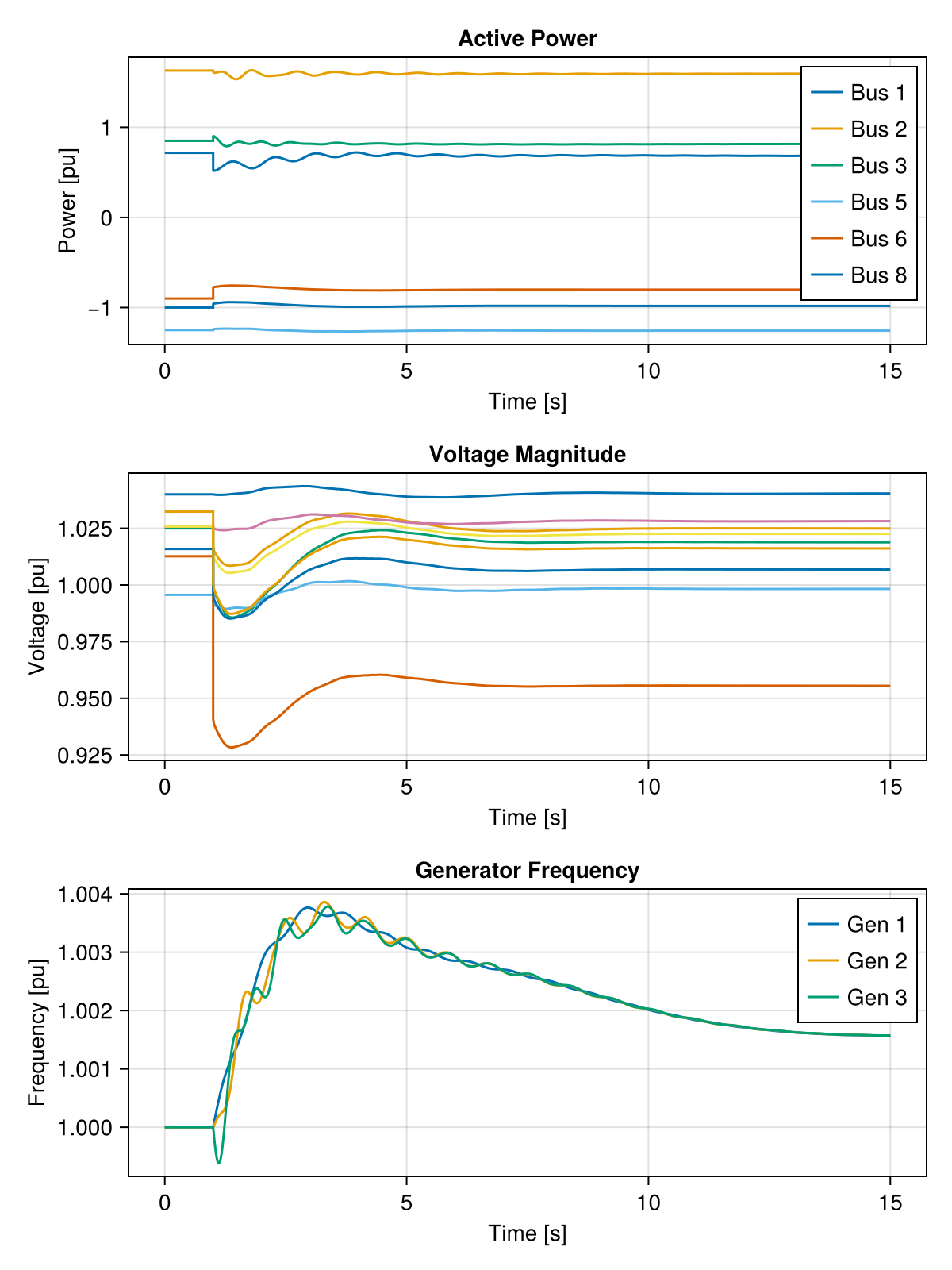

Example block output
